Access cluster detail information

Check a cluster's configuration, Worker Groups, and API endpoint from its detail page.

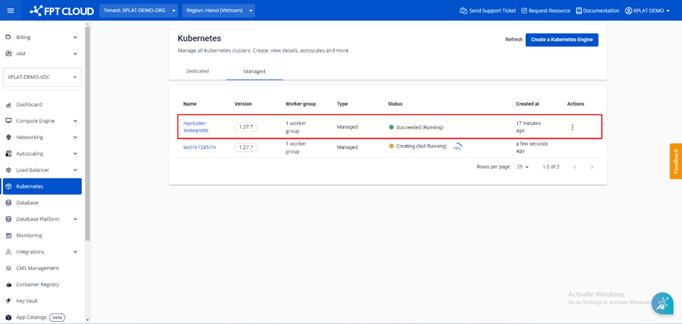

  1. From the menu, select Kubernetes. On the Kubernetes Management page, select the Managed tab, then select the Cluster you want to view.

    Kubernetes Management page, Managed tab, with a cluster selected

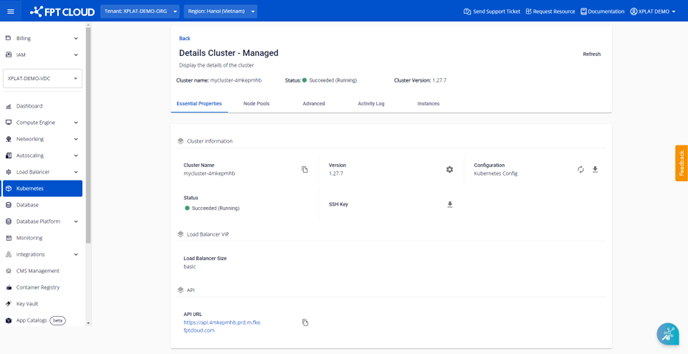

  2. The Essential Properties tab shows the cluster's information:

    Essential Properties tab

    • Cluster Information: Cluster Name, Kubernetes version, Kubernetes Config file, Status, and SSH Key file.
    • Load Balancer VIP: the selected LB size.
    • Worker Groups Config: each Worker Group's Min/Max node count, CPU, Memory, and Disk.
    • API: the API URL.

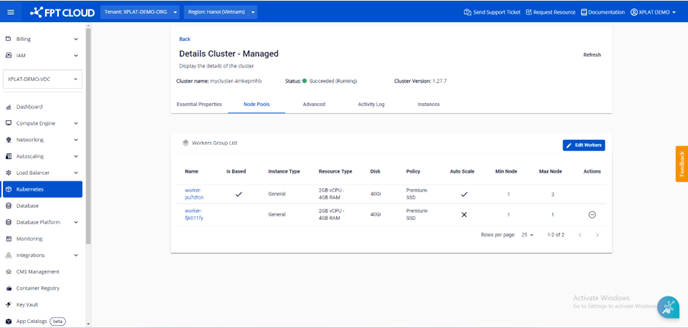

  3. The Node Pools tab lists every Worker Group in the cluster with its configuration:

    Node Pools tab

    • Name: Worker Group name.
    • Is Based: distinguishes the base Worker Group from regular ones.
    • Instance Type: CPU or GPU.
    • Resource Type: CPU and RAM count.
    • Disk: disk capacity.
    • Policy: the selected Storage Policy.
    • Auto Scale: whether autoscaling is enabled.
    • Scale min: minimum Worker Node count configured for the group.
    • Scale max: maximum Worker Node count configured for the group.
    • Actions: delete a Worker Group when it's no longer needed — the base Worker Group can't be deleted.
