2.18 Iceberg (logs) Sink Connector

Create a connector where Type is sink and Database is Iceberg (logs)

Pre-condition: CDC service status is healthy

Steps to create a connector:​

Step 1: In the menu bar, select Data Platform > select Workspace Management > select Workspace name

Step 2: In the My services section, select CDC service

Step 3: On the CDC service detail screen > select the Connectors tab > click Create a connector

image-1

Step 4: Enter the information on the Connector Information screen:

  • Name (required): connector name

Note: The connector name can contain lowercase letters a-z or digits 0-9. In particular, spaces are not allowed — you can replace spaces with "-".

  • Type (required): select sink
  • Database (required): select Iceberg (logs)

image-2

Step 5. Click Next to proceed to the Properties screen - Enter the following information:

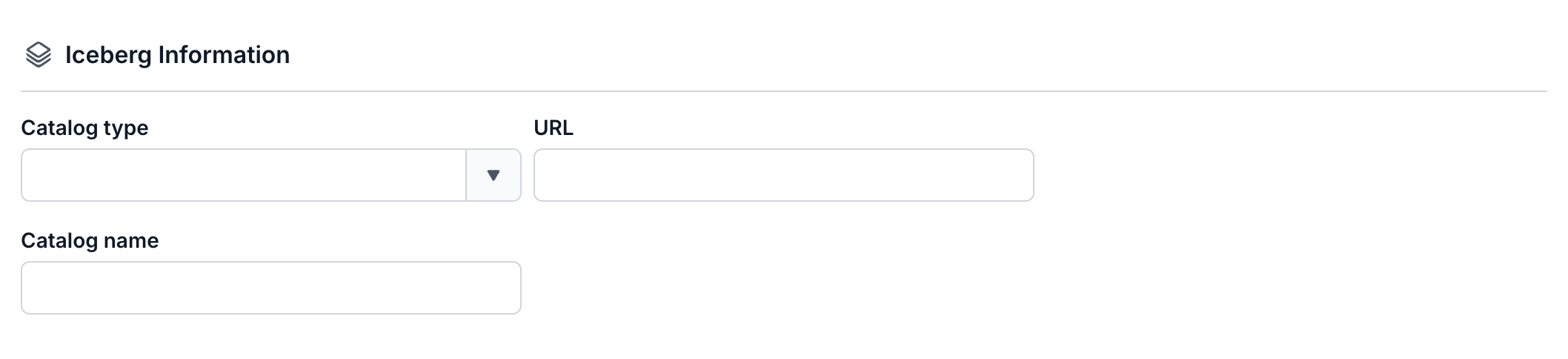

  • Catalog type (required): select the catalog type
  • URL (required): enter the URL path
  • Catalog Name (required): catalog name

image-3

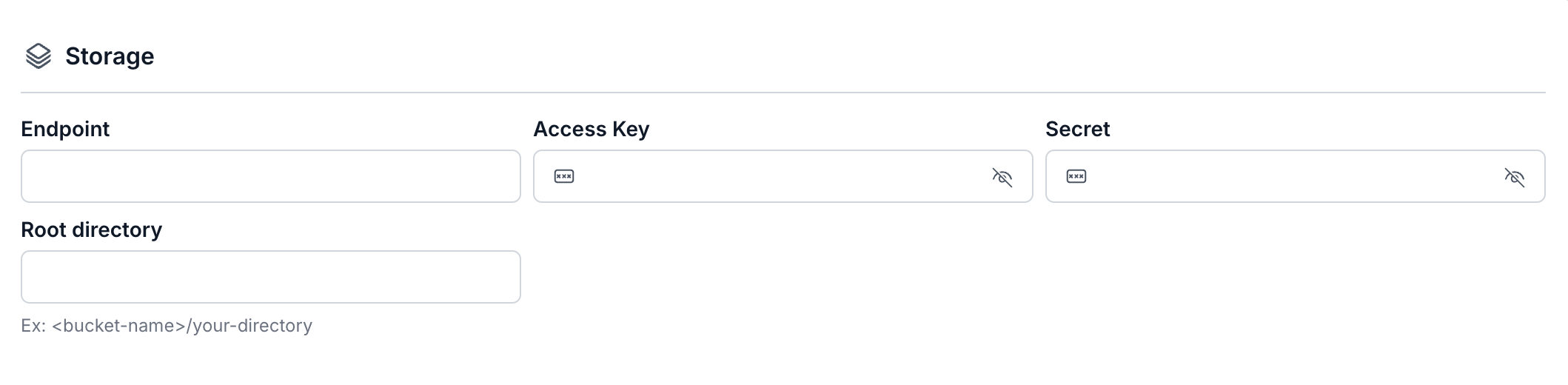

  • Endpoint (required): endpoint address to S3
  • Access key (required): access key
  • Secret (required): password for connecting to the endpoint
  • Root directory (required): root directory in S3

image-4

Click Test connection to verify the connection from the Workspace to the entered Database

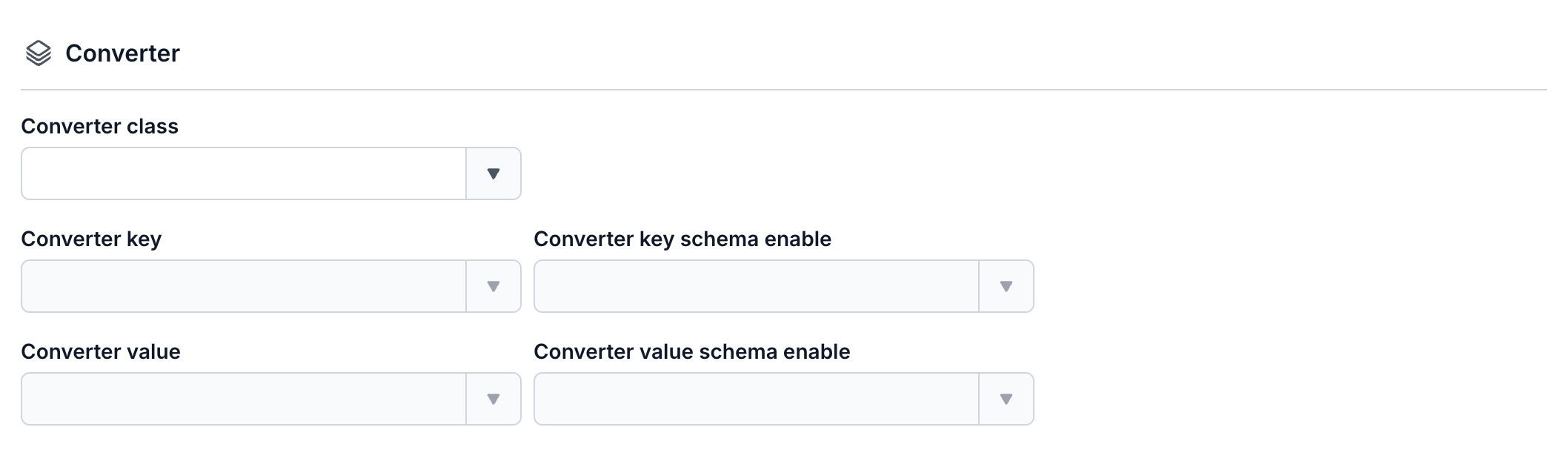

  • Converter
    • Converter key: select the key value for the converter
    • Converter key schema enable: select whether or not to use a schema in the Converter key
    • Converter value: select the value for the converter
    • Converter value schema enable: select whether or not to use a schema in the Converter value

image-5

  • Topics (required): select the data topics sent from the source connector

image-6

Step 6: Click Next to proceed to the Additional Properties screen

Enter the following information:

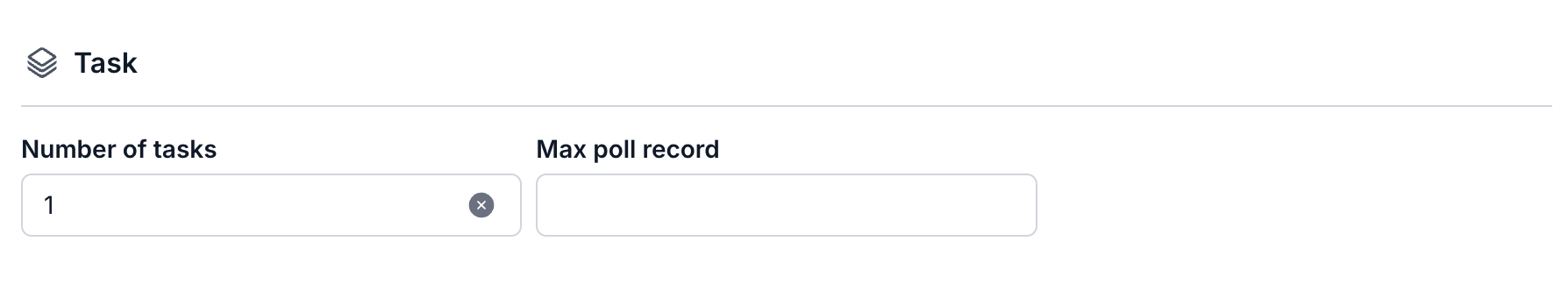

  • Number of tasks: the maximum number of tasks that can run in parallel
  • Max poll record: the max poll record count

image-7

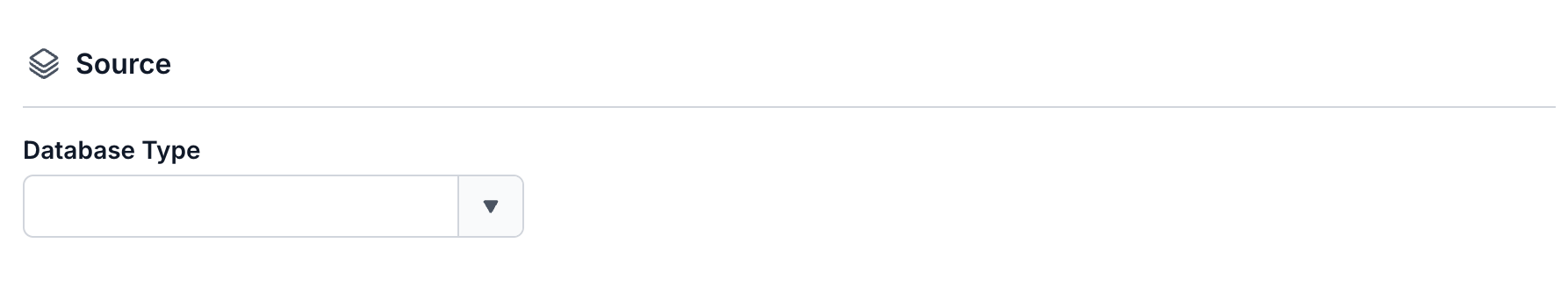

  • Type: select the source DB Type

image-8

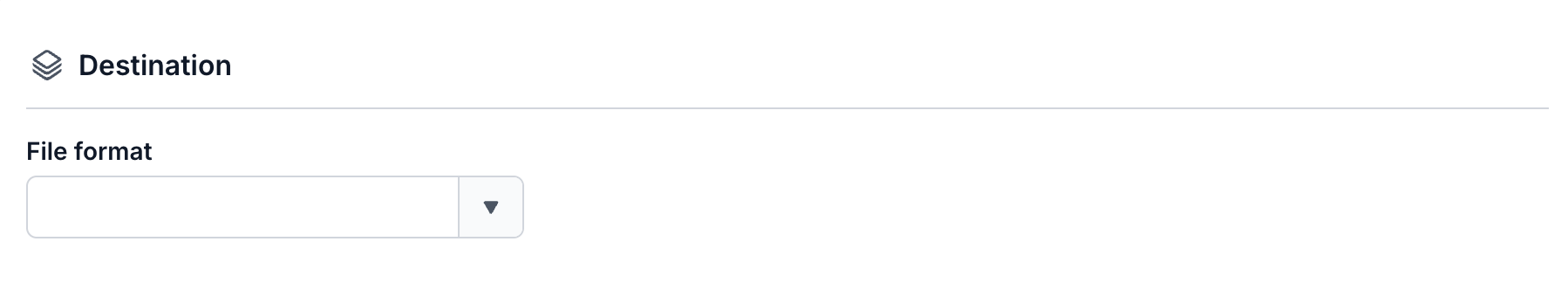

  • Destination:
    • File format: select the file format

image-9

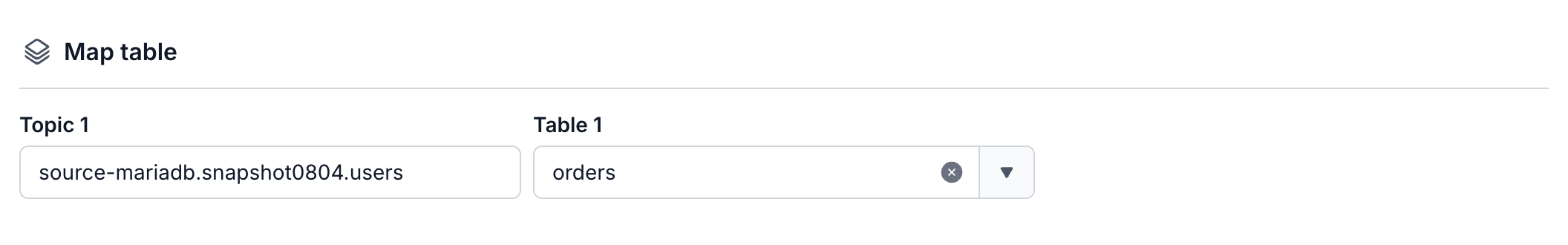

  • Topic 1: The list of topics the Connector will consume and sink data into the target database, separated by ","
  • Table 1: The table name in the Database

image-10

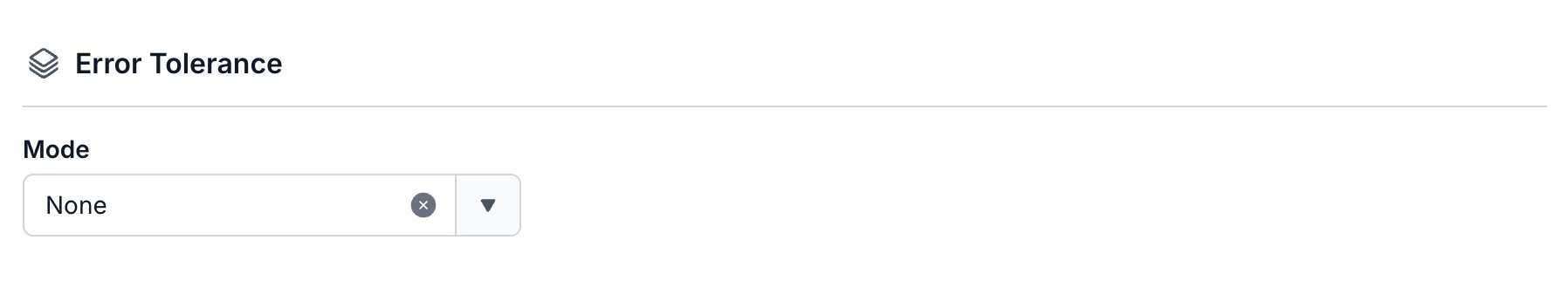

  • Mode: The Connector's behavior when a message cannot be processed
    • None: the connector will stop processing if an error occurs
    • All: Failed messages will be sent to the specified topic

image-11

Step 7: Click Next to proceed to the Review screen

Step 8: Review the information, then click Create to finish creating the connector
