SQL Server Sink Connector

Create a connector with Type: sink, Database: SQL Server

Pre-condition: CDC service status is healthy

Steps to create a connector:​

Step 1: From the menu bar, select Data Platform > Workspace Management > Workspace name

Step 2: Under My services, select CDC service

Step 3: On the CDC service detail screen > Select the Connectors tab > Click Create a connector

image-1

Step 4: Enter the information on the Connector Information screen:

  • Name (required): connector name

Note: The connector name may contain lowercase letters a-z or digits 0-9. Spaces are not allowed; use "-" instead of a space.

  • Type (required): select sink
  • Database (required): select SQL server

image-2

Step 5: Click Next to proceed to the Properties screen

Enter the Properties information

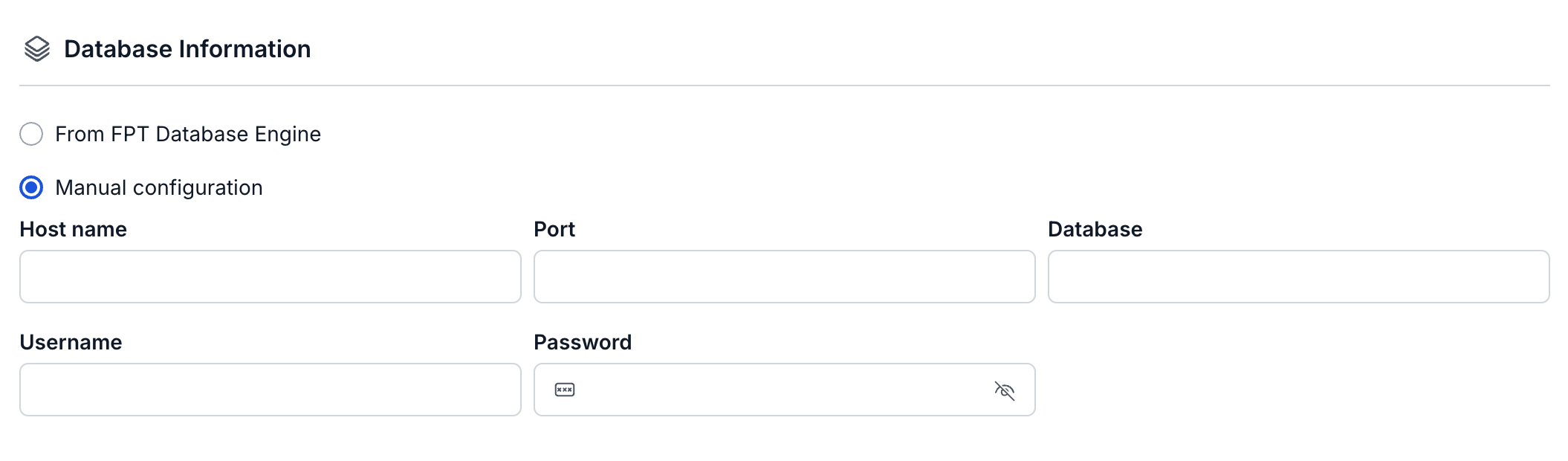

  • When selecting Manual configuration - fill in the following fields:
    • Host Name (required): Hostname or IP of SQL Server
    • Port (required): SQL Server port, default: 1433.
    • Database name (required): Target database where the Connector will sink data
    • Username (required): Username used by the Connector
    • Password (required): Password used by the Connector

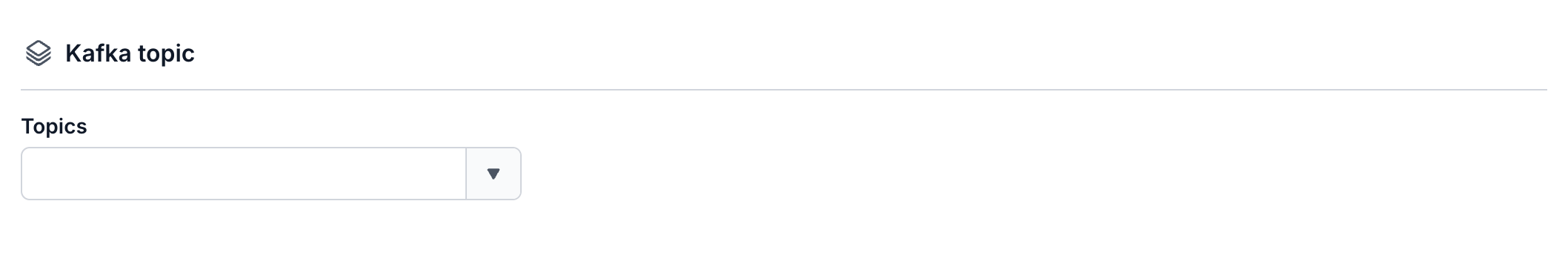

    • Topics (required): List of topics the Connector will consume and sink data to the target database, separated by ","

image-3

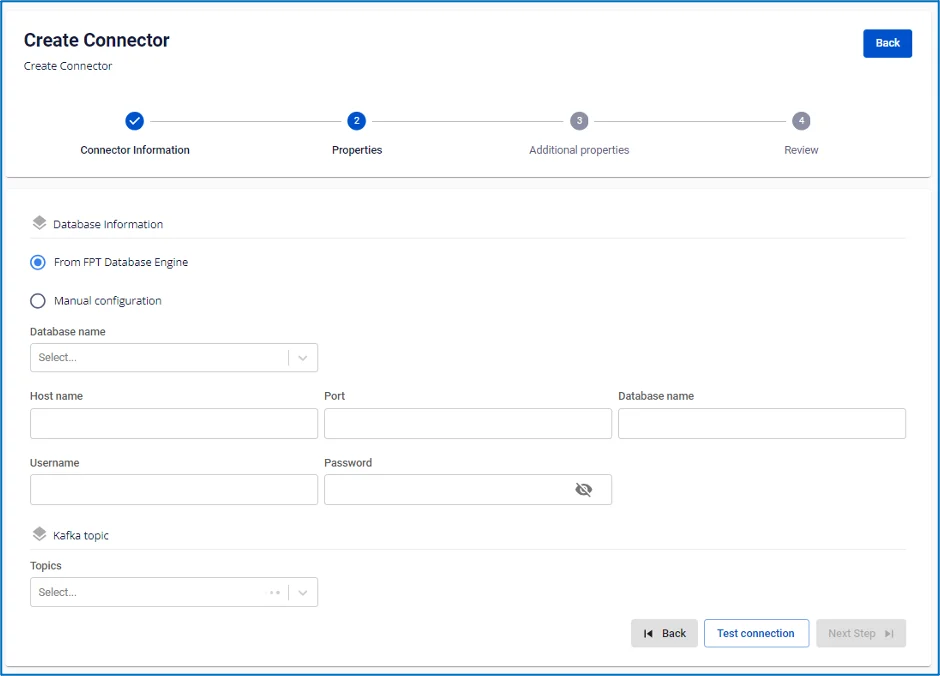

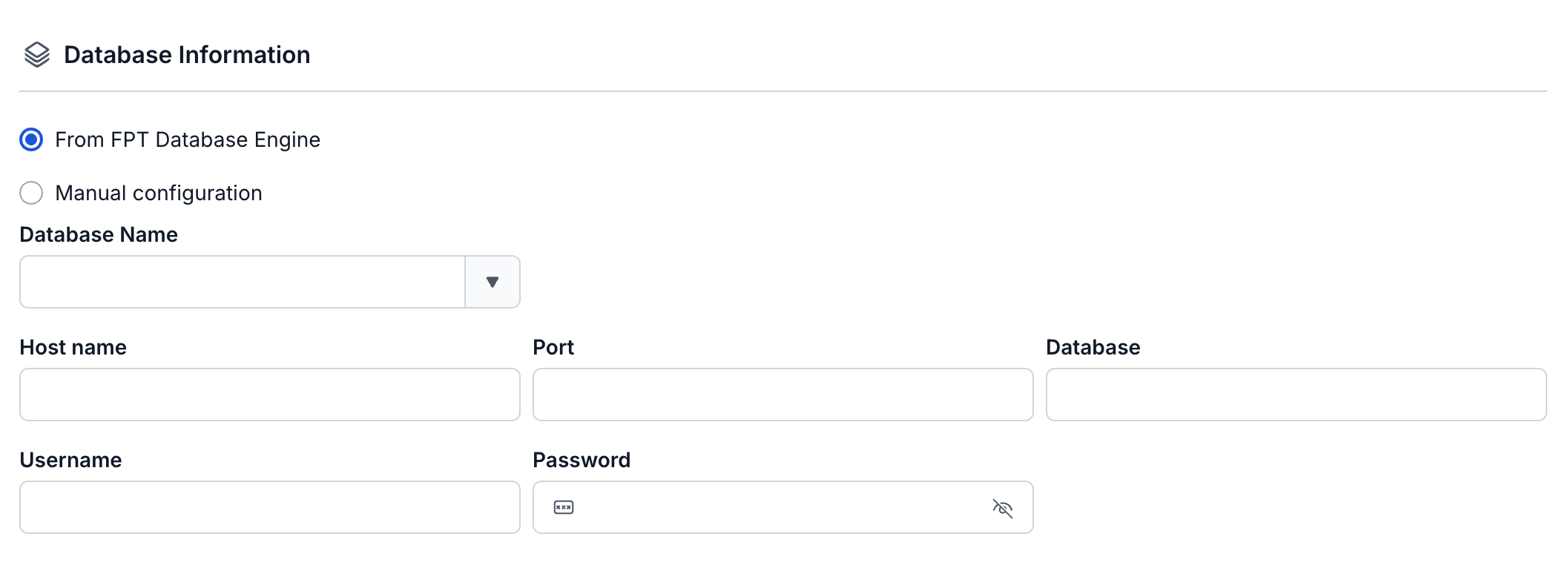

  • When selecting From Database Engine - fill in the following fields:
    • Database name (required): Database name
    • Host Name (required): Hostname or IP of SQL Server
    • Port (required): SQL Server port, default: 1433.
    • Database name (required): Target database where the Connector will sink data
    • Username (required): Username used by the Connector
    • Password (required): Password used by the Connector
    • Topics (required): List of topics the Connector will consume and sink data to the target database, separated by ","

image-4

  • Click Test connection to verify the connection from the Workspace to the entered Database

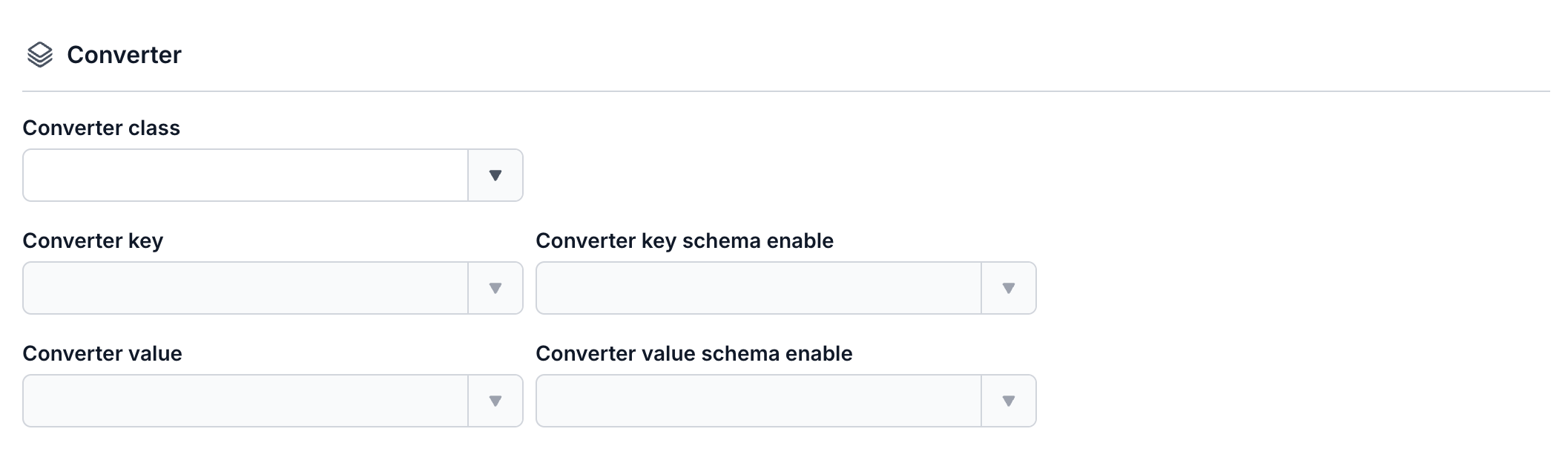

  • Converter
    • Converter key: select the key value for the converter
    • Converter key schema enable: select whether or not to use a schema in the Converter key
    • Converter value: select the value for the converter
    • Converter value schema enable: select whether or not to use a schema in the Converter value

Step 6: Click Next to proceed to the Additional Properties screen

Enter the following information:

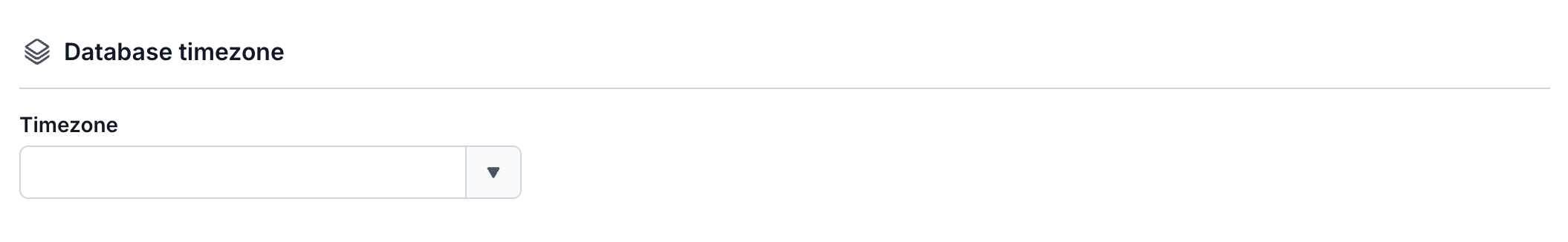

  • Timezone: select the appropriate timezone for the data from the source database

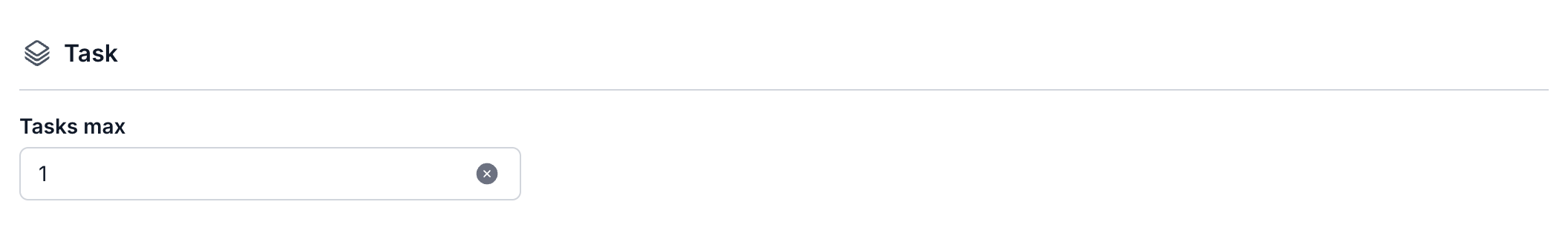

  • Task max: number of tasks to process simultaneously

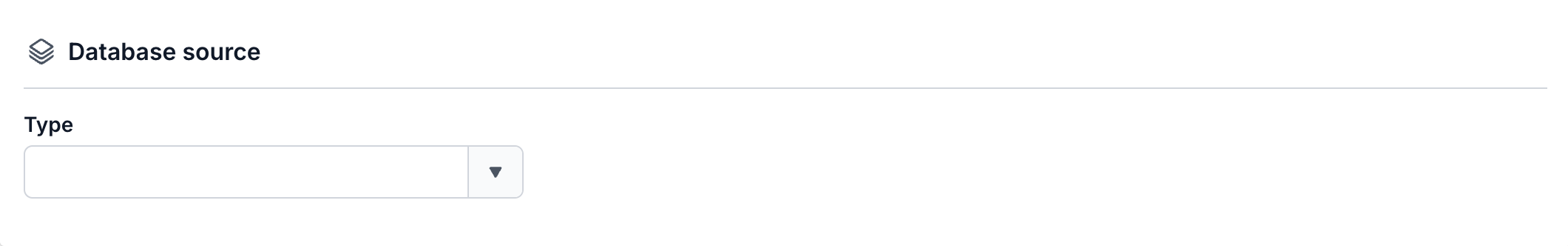

  • Type: select the type of source Database
  • Name: schema name

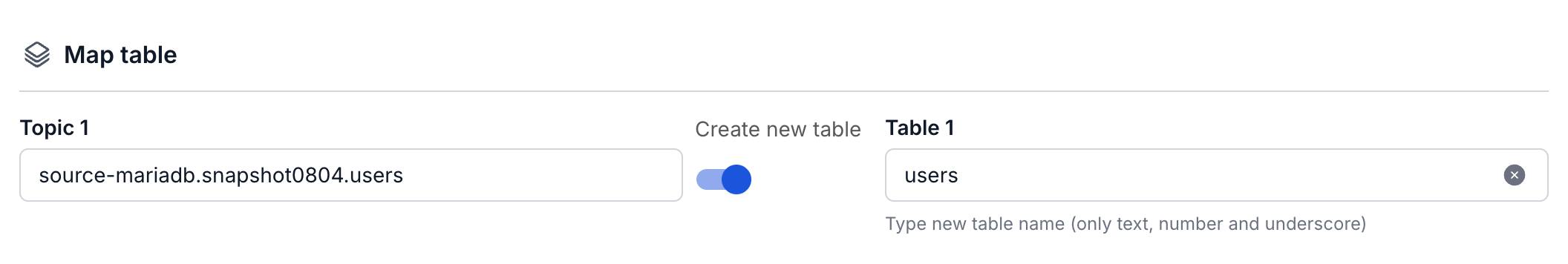

  • Topic 1: topic name to listen to from the source connector
  • Table 1: table name listening for data changes from the source connector

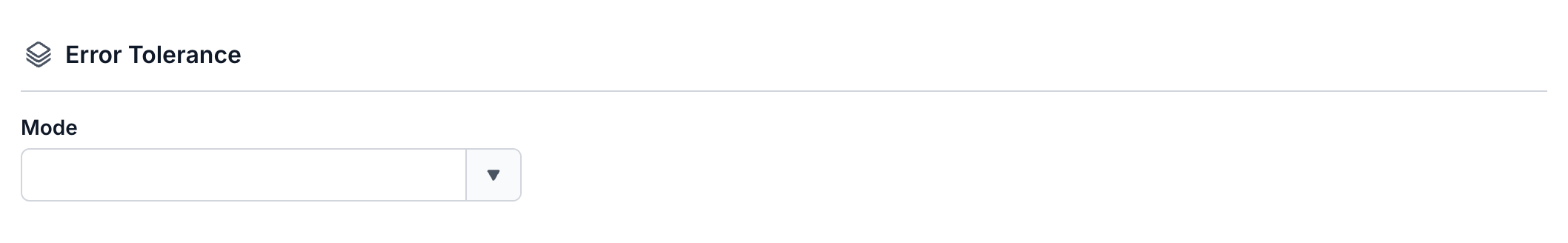

  • Mode (required): The Connector's behavior when it cannot process a message
    • None: The Connector will skip messages that cannot be sunk to the database
    • All: Error messages will be sent to the specified topic

image-5

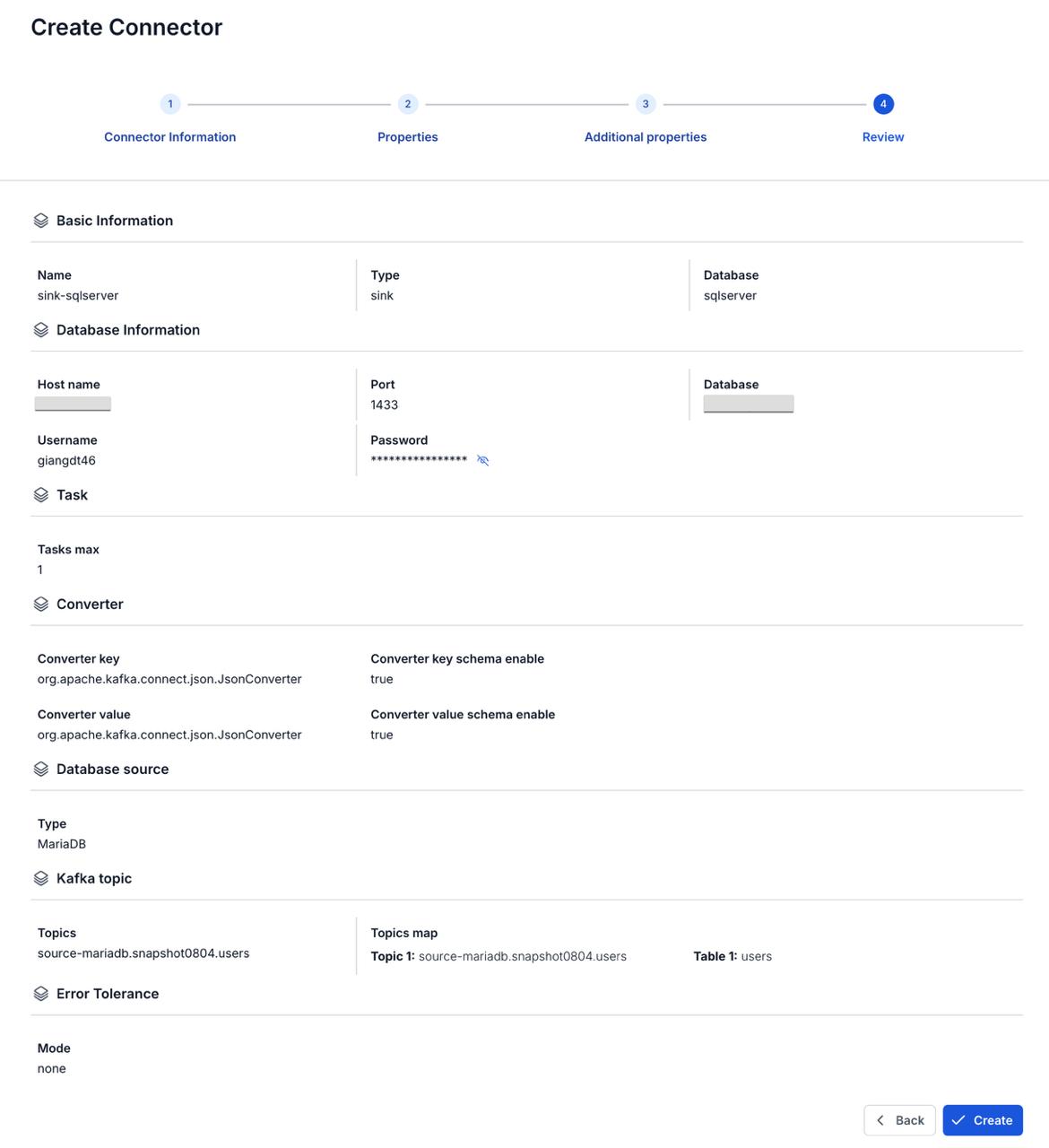

Step 7: Click Next to proceed to the Review screen

image-6

Step 8: Review the information and click Create to complete the connector creation
