Certificate Manager

Certificate Manager is a module within Workspace used to manage the lifecycle of digital certificates (SSL/TLS), helping ensure security, continuity, and ease of use.

Key features:

  • Manage certificates.
  • Replace (renew) or delete certificates.
  • Apply certificates to services within the Workspace.

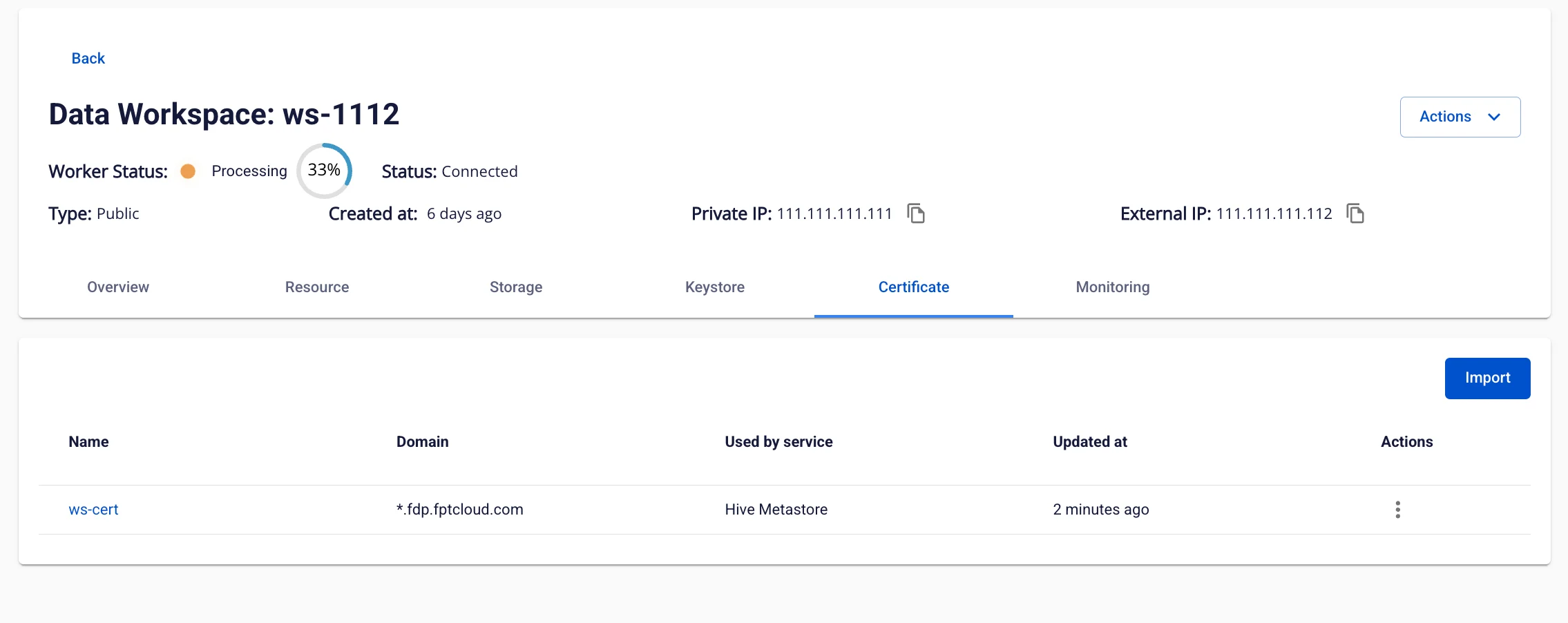

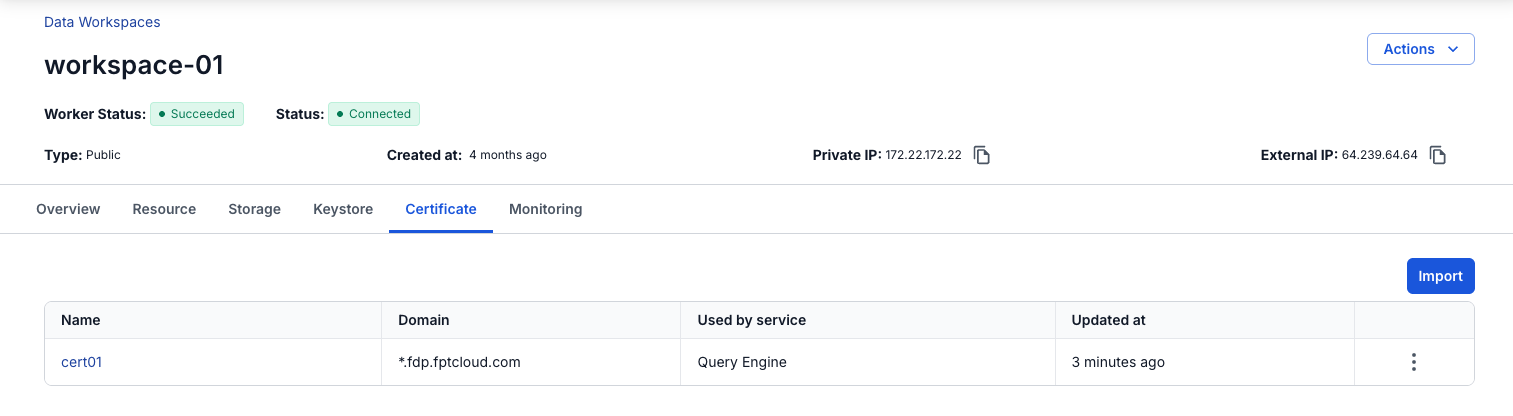

1. Certificate List​

Purpose: Displays the list of certificates created in the system.

Access: Data Platform > Select Workspace > Certificate Tab

Certificate list, including the following columns:

  • Name: Certificate name (click to view details).
  • Domain: Applied domain name.
  • Used by service: Service currently using the certificate.
  • Updated at: Time of the most recent update.
  • Action: Action menu (edit, delete).
  • Import to renew: Import a certificate to renew it (only available if it is currently in use).
  • Delete: Remove the certificate from the system.
    • Button Import: Import a new certificate.

list-cert

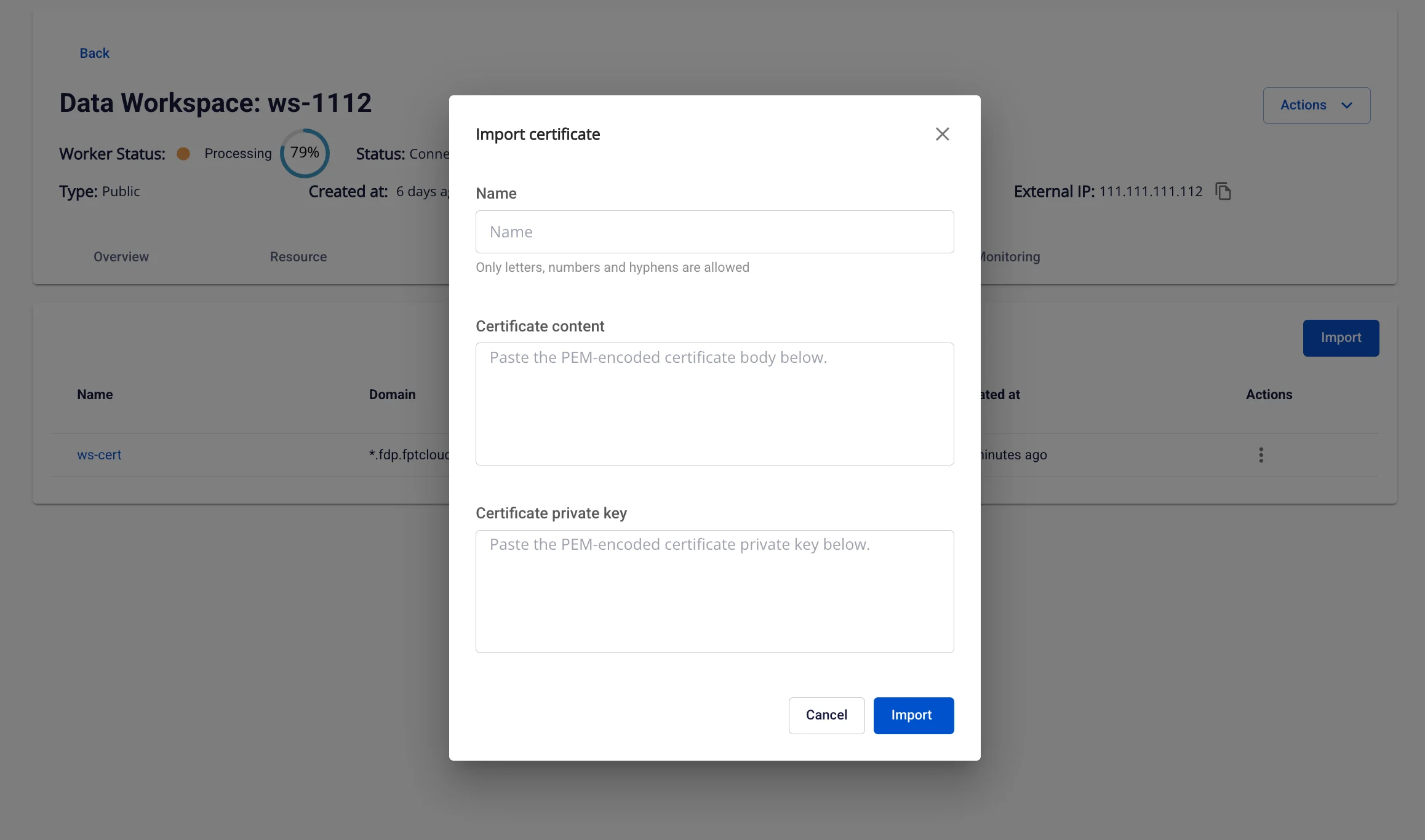

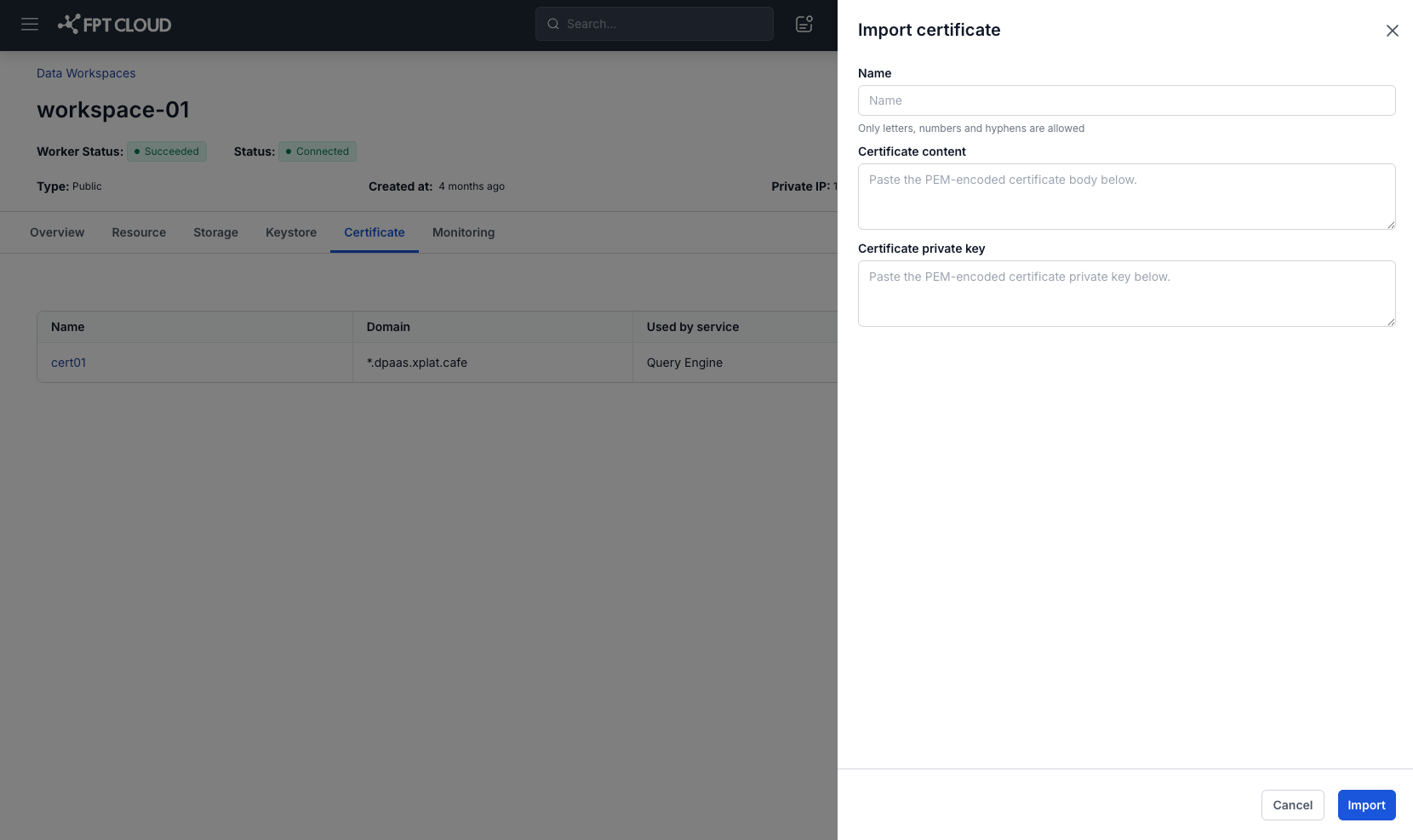

2. Import Certificate​

Purpose: Upload a new SSL/TLS certificate and private key for use.

Access: Data Platform > Workspace > Certificate > Import

Steps:

  1. Enter the Name (letters, numbers, and hyphens only; must not duplicate an existing name).

  2. Paste the Certificate content (PEM format).

  3. Paste the Certificate private key (PEM format).

  4. Click Import.

System validation checks:

  • Valid PEM format.
  • Certificate is not expired, has not been revoked, and has reached its validity date.
  • Private key matches the certificate.

import-cert

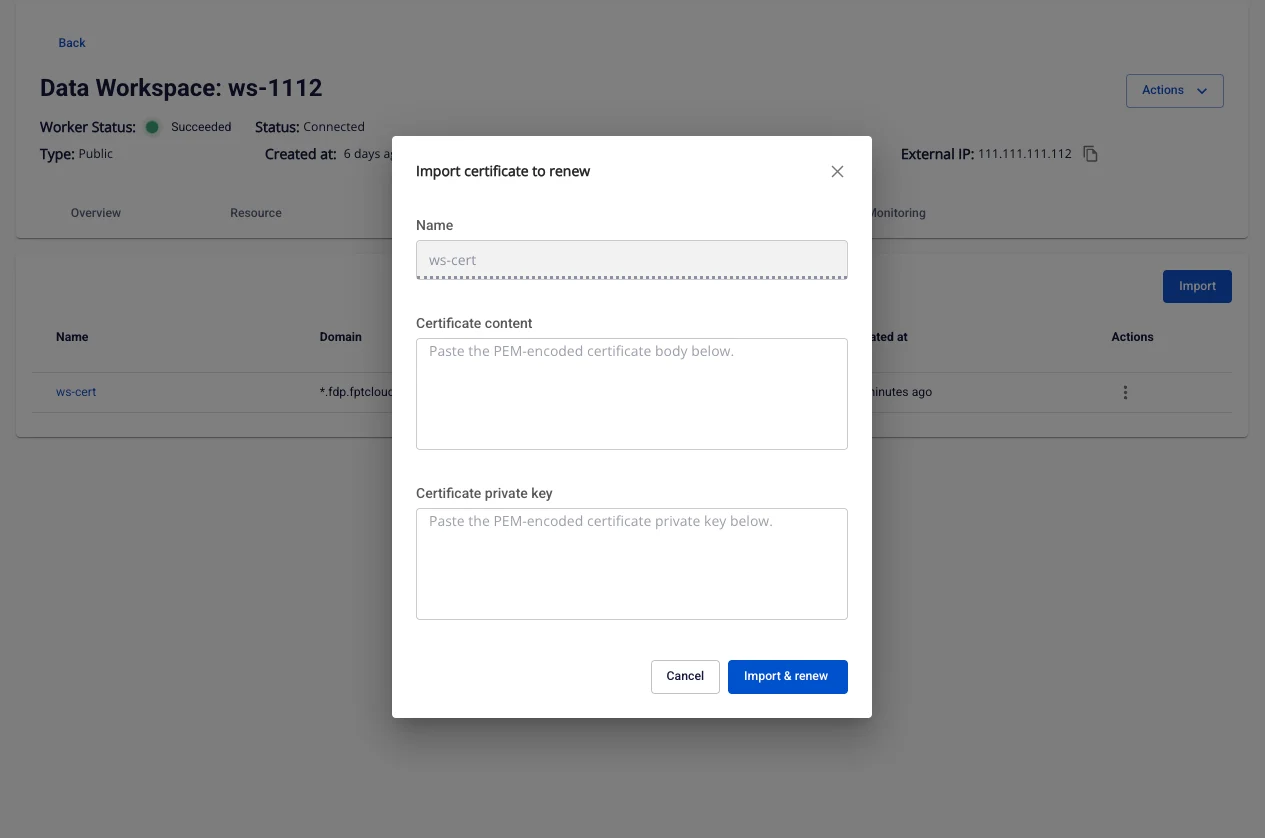

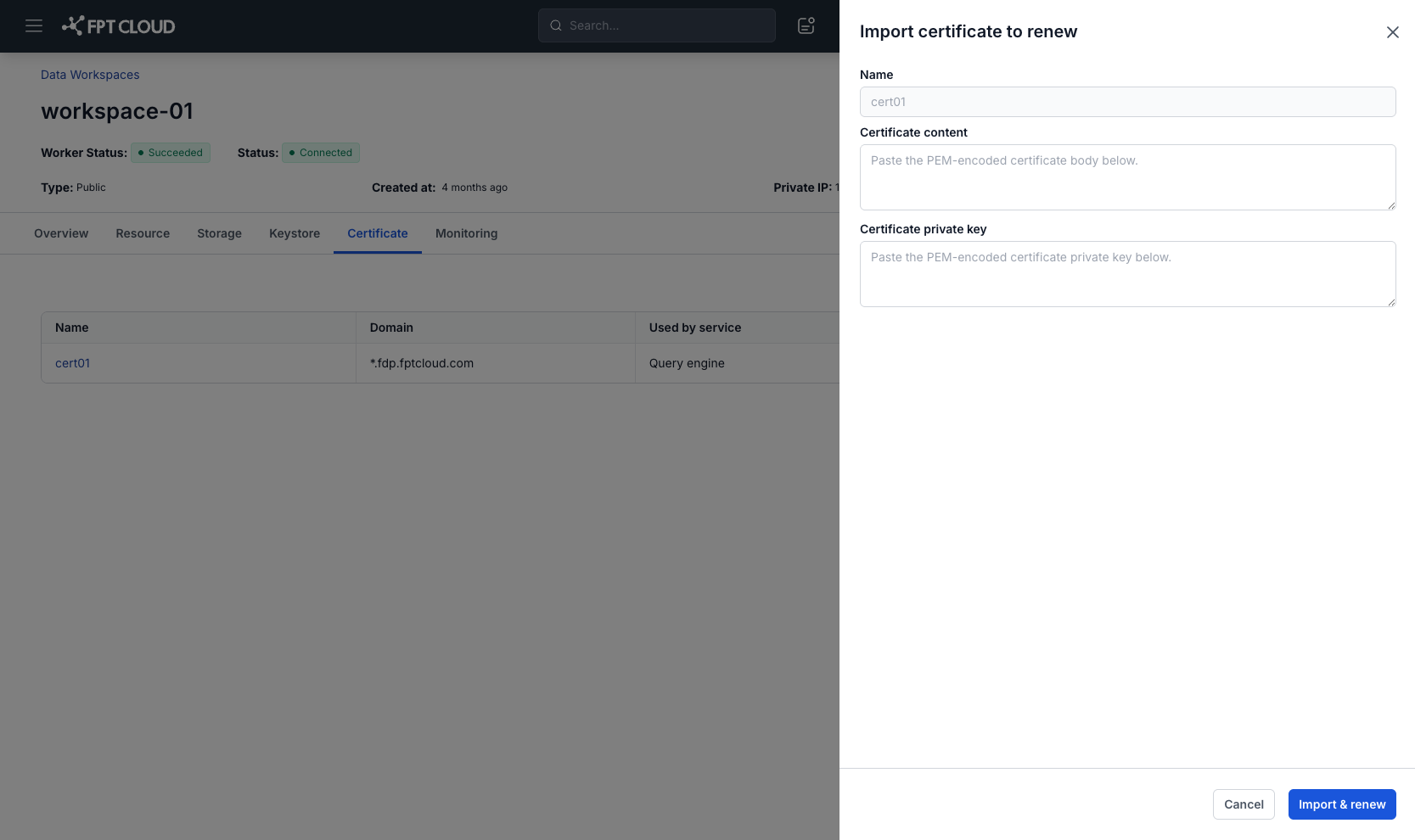

3. Import Certificate to Renew​

Purpose: Replace the current certificate with a new one.

Access: Data Platform > Workspace > Certificate > Import Certificate to Renew

Steps:

  1. Enter the Certificate content and Certificate private key (PEM format).

  2. Click Import & renew.

  3. The system updates and immediately applies the certificate to the service currently in use.

Conditions:

  • Valid PEM format.
  • Not expired, not revoked, and has reached its validity date.
  • Private key matches the certificate.
  • The certificate has not been renewed before.

import-renew-cert

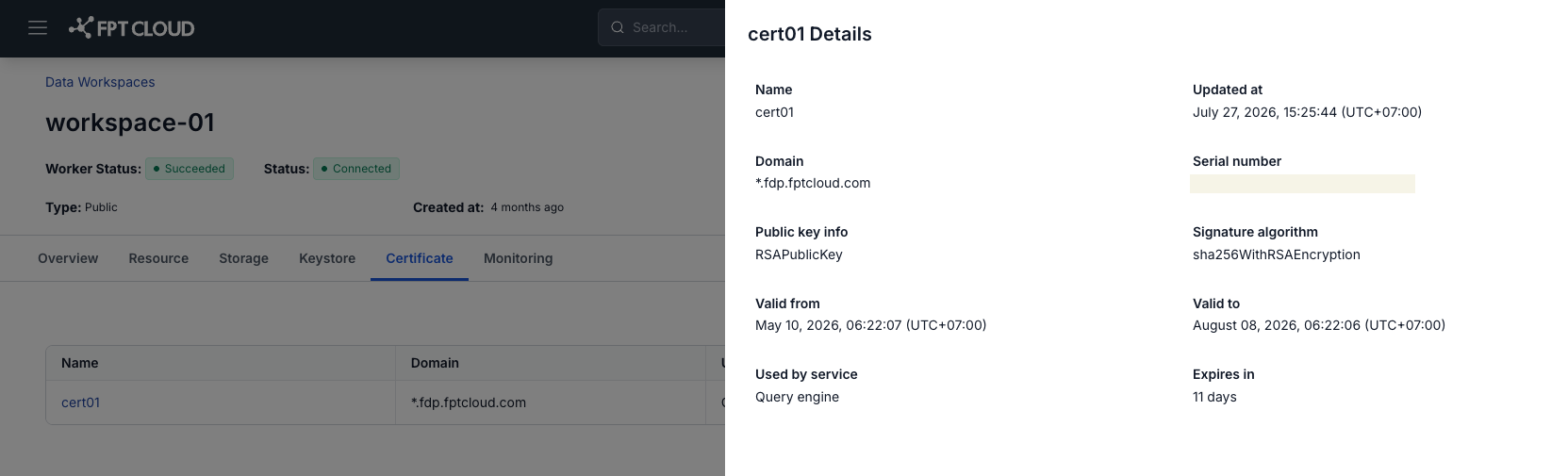

4. Certificate Details​

Purpose: View detailed information about a certificate.

Access: Data Platform > Workspace > Certificate > Click on the certificate name

When you click on a certificate name in the Certificate List, the system opens a detail popup displaying the following fields:

FieldDetailed description
NameThe identifier name of the certificate in the system. Set when the certificate is imported. Used to distinguish between different certificates.
Domain nameThe domain name or wildcard domain (e.g., example.com or *.example.com) that the certificate protects. This is important information for determining whether the certificate is suitable for the service that needs it.
Public key infoInformation about the type and length of the public key, e.g., RSA 2048, RSA 4096, ECDSA P-256. A longer key length provides higher security but requires more processing.
Valid FromThe date and time the certificate becomes valid. Displayed with the timezone to avoid confusion when deploying across multiple regions.
Valid ToThe date and time the certificate expires. After this point, the certificate is no longer valid and may cause secure connection (HTTPS) errors for the service.
Expires inThe number of days remaining until the certificate expires. Automatically calculated by the system based on the current time and Valid To. This is a useful indicator for tracking and planning a timely renewal.
Used by serviceThe list of services currently using this certificate, e.g., JupyterHub, Ingestion API, Query Engine, etc. This field is only shown if the certificate is assigned to at least one service.
Serial numberThe unique serial number of the certificate, typically issued by the CA (Certificate Authority). Used for lookup, verification, or management of the certificate in the system.
Signature algorithmThe digital signature algorithm used by the certificate, e.g., SHA-256 with RSA or ECDSA with SHA-384. This affects security level and processing speed.
Updated atThe time the certificate was most recently updated in the system (typically when newly imported or renewed). Helps track the certificate's change history.

details-cert

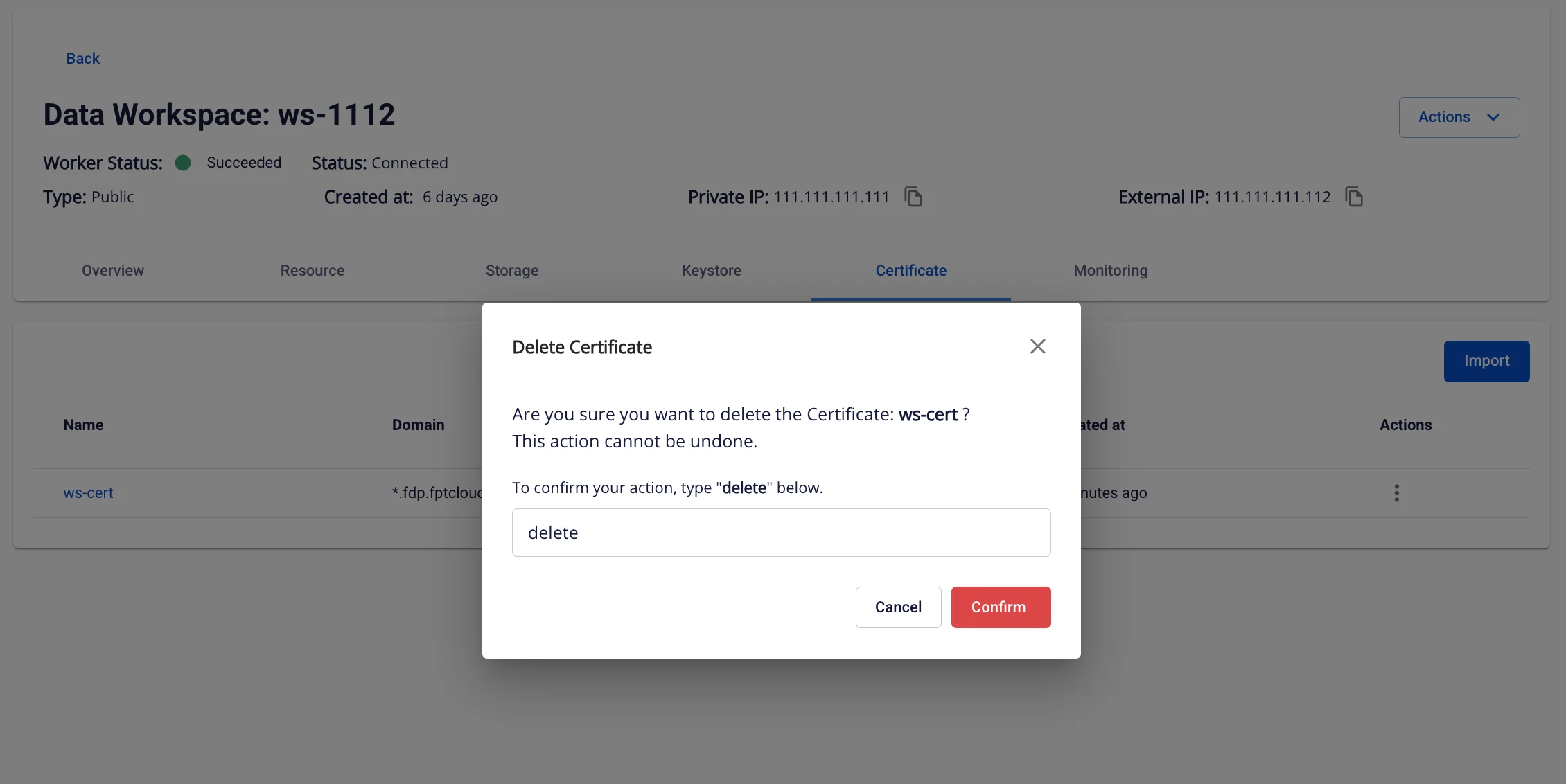

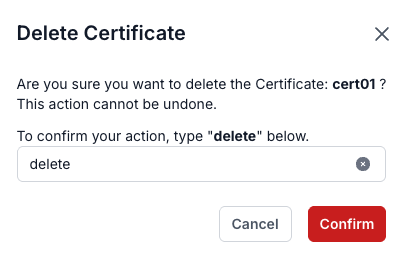

5. Delete Certificate​

Purpose: Remove a certificate from the system.

Access: Data Platform > Workspace > Certificate > Action > Delete

Steps:

  1. Enter the keyword delete in the confirmation field.

  2. Click Confirm to delete.

Conditions:

  • If the certificate is currently in use, it cannot be deleted.
  • If the wrong keyword is entered or the field is left empty, the system will display an error.

delete-cert
