Add a security scan job

Security jobs run automated checks inside your Pipeline — a Trivy scan checks a container image for known vulnerabilities, and a SonarQube scan runs static code analysis against a Quality Gate. Add either as a Job within a Stage, typically in your Test stage.

Prerequisites

• The Pipeline has been created and saved. See Create and configure a pipeline.
• For a SonarQube scan, a SonarQube connection is configured. See Manage credentials.

Add a Trivy scan

1. In the Pipeline Editor, click Add Job (or Add Parallel Job) on the Stage you want to scan from.

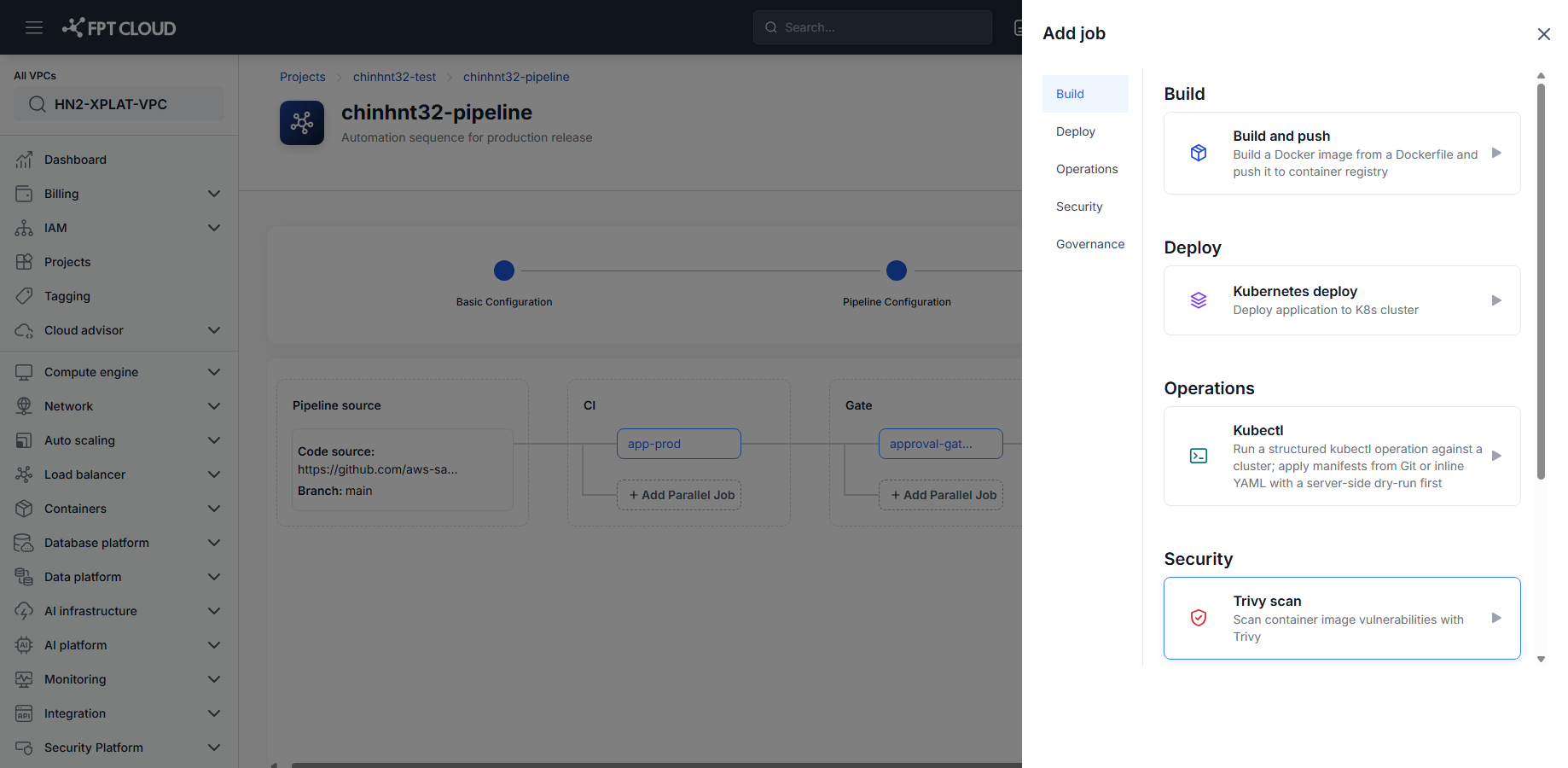

2. Under Security, select Trivy scan.

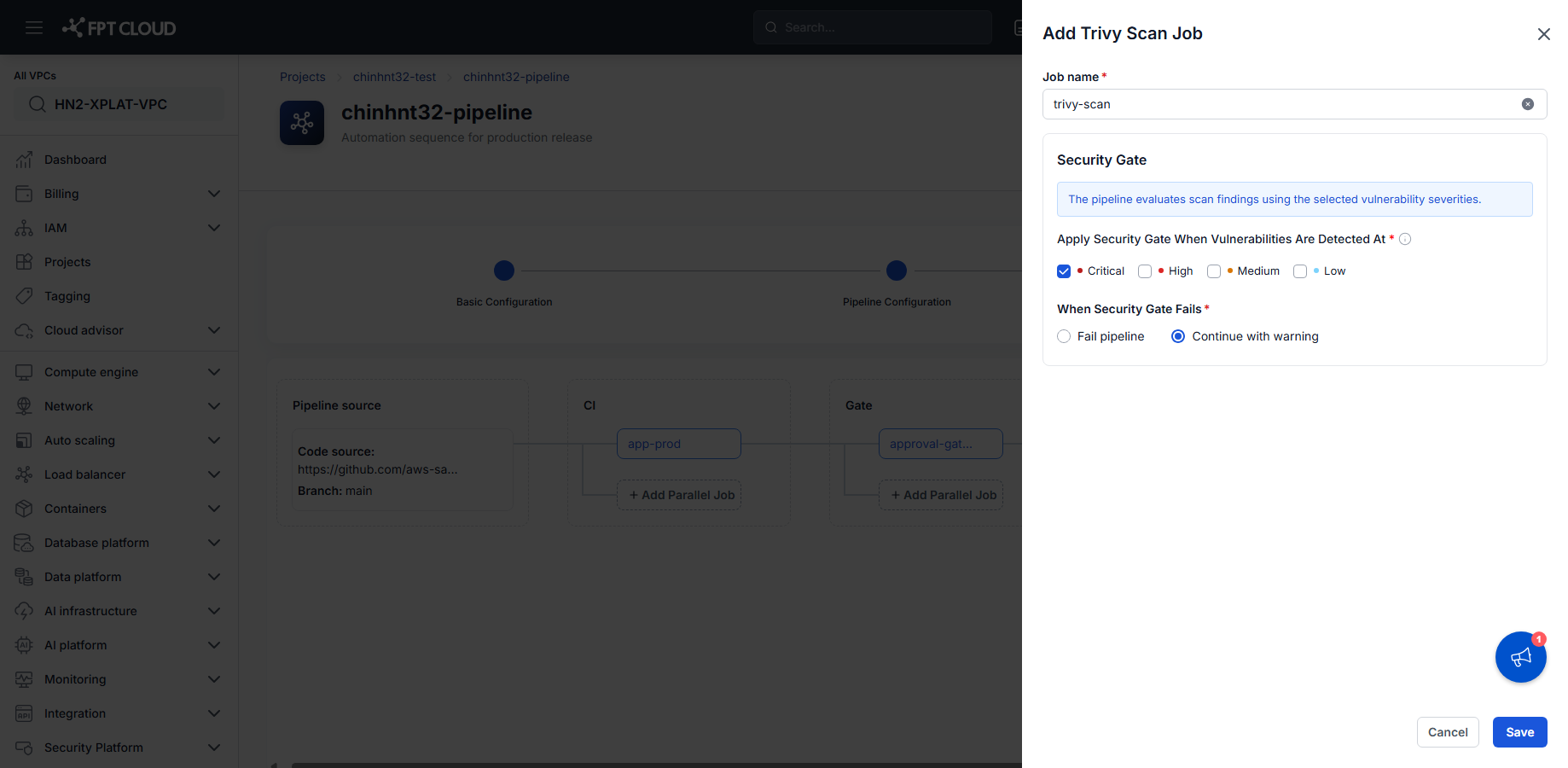

3. Enter the Job name.
4. Under Security Gate, select which severities (Critical, High, Medium, Low) should trigger the gate.
5. Choose what happens When Security Gate Fails: Fail pipeline or Continue with warning.
6. Click Save.

The Trivy scan runs against the image produced earlier in the Pipeline and reports findings by severity.

Add a SonarQube scan

1. In the Pipeline Editor, click Add Job on the Stage you want to scan from.

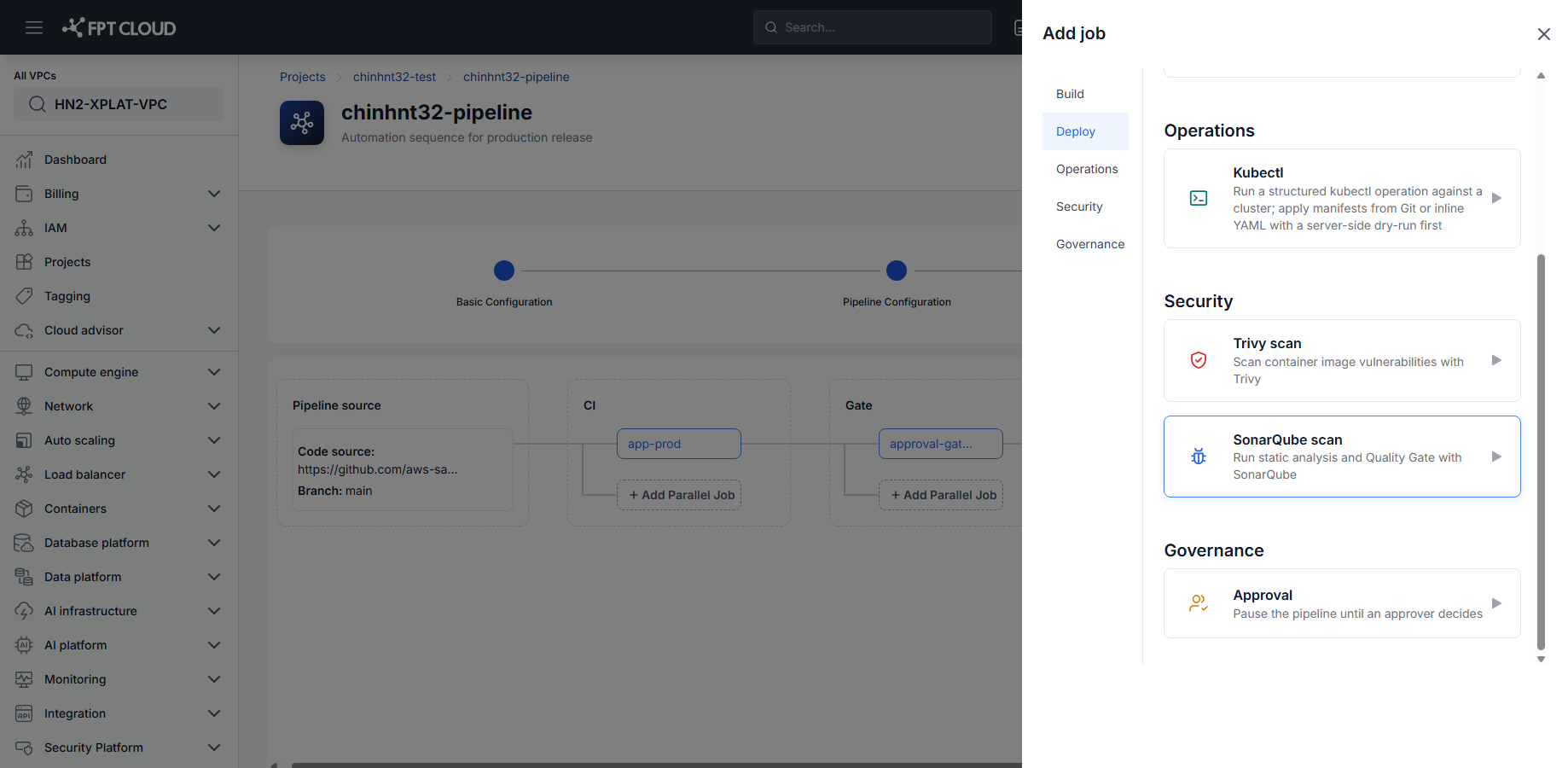

2. Under Security, select SonarQube scan.

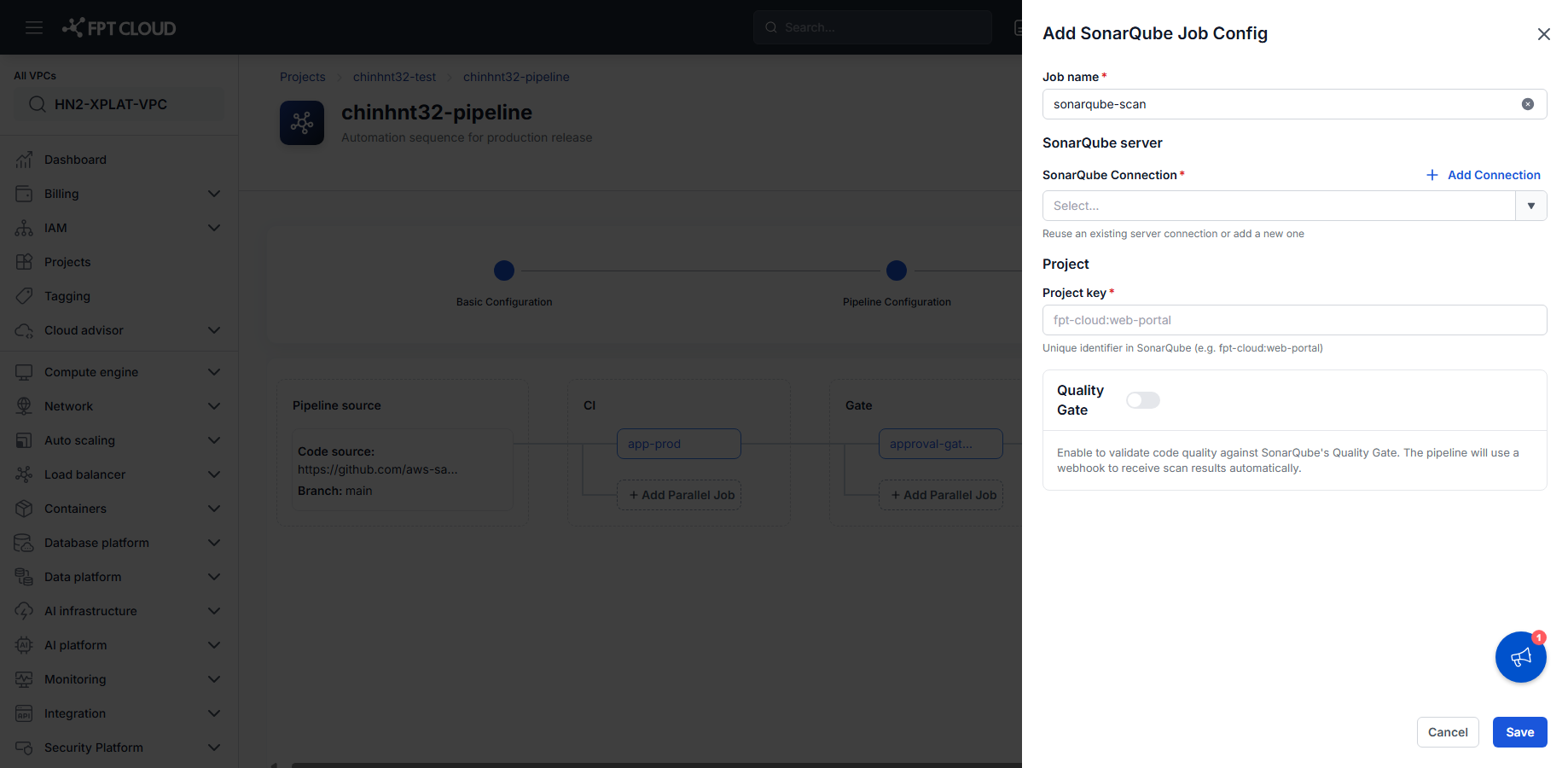

3. Enter the Job name.
4. Select an existing SonarQube Connection, or click Add Connection to create one. See Manage credentials.
5. Enter the Project key — the project's unique identifier in SonarQube.
6. Optionally enable Quality Gate to validate results against SonarQube's Quality Gate via webhook.
7. Click Save.

tip

Enabling Quality Gate means the Pipeline waits for SonarQube's webhook response before continuing — make sure the SonarQube server can reach this Pipeline.

Next steps

• Add an approval gate — pause the Pipeline for review after a scan.
• Security scan jobs reference — field reference for both job types.
