Configure IPv6 Security Group Rules

This guide helps you create rules in a Security Group to control IPv6 traffic to and from an Instance.

Before you start​

  • Logged in to the Console Portal with the security-group:Update permission
  • A Security Group already exists (or create one first)

Create a rule for IPv6​

  1. Go to Network → Security Groups → select the Security Group to configure.
  2. Under Configure security rule, choose the Inbound rule or Outbound rule tab and click Add rule to add a new editable row.
  3. In the IP type column, select IPv6.
  4. In the Sources column, choose one of:
    • The All IPv6 preset chip (::/0) — allows all IPv6 traffic
    • A specific IPv6 CIDR (for example, 2401:db00::/32)
  5. Fill in Type, Protocol, Port range, and Rule Action as needed.
  6. Click Edit security group to save.

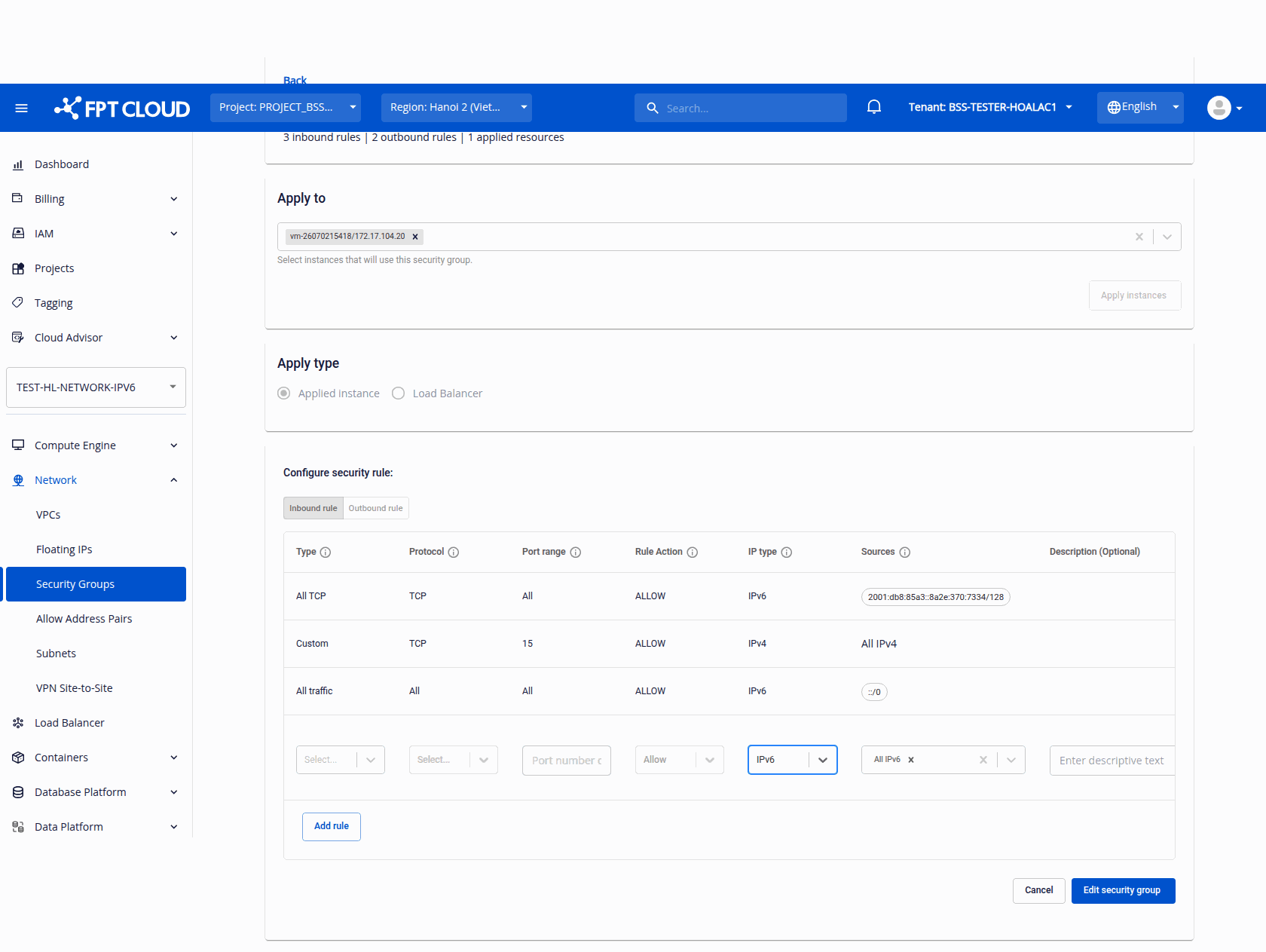

Adding an inbound rule with IP type IPv6 and the All IPv6 source

Result: The rule is saved and listed with IPv6 in the IP type column and its IPv6 Sources.

Security group rules table showing IPv6 rules in the IP type column

Automatic source conversion when changing IP type​

While composing a rule, if you change the IP type, the system automatically converts an "any" source:

ActionSource beforeSource after
Switch from IPv4 to IPv60.0.0.0/0 (All IPv4)::/0 (All IPv6)
Switch from IPv6 to IPv4::/0 (All IPv6)0.0.0.0/0 (All IPv4)
note

This only applies when the source is "any". If you already entered a specific CIDR, the source is not converted.

Validation errors​

ErrorCauseSolution
"Invalid IPv6 CIDR."The source is not a valid IPv6 CIDR when IP type = IPv6Enter the correct format, for example 2401:db00::/32
