Configure L7 policy for a Listener

L7 Policies control and route traffic to backend servers. An L7 Policy is a set of L7 Rules that combine to form a layer-7 routing policy for HTTP/HTTPS requests. Each policy has two components:

  • Condition: Evaluates incoming requests.
  • Action: Applied when a request matches the conditions.

Create an L7 policy​

Step 1: In the Listener list, click the Listener you want to configure.

Step 2: Select the L7 Policy tab, then click Add Policy.

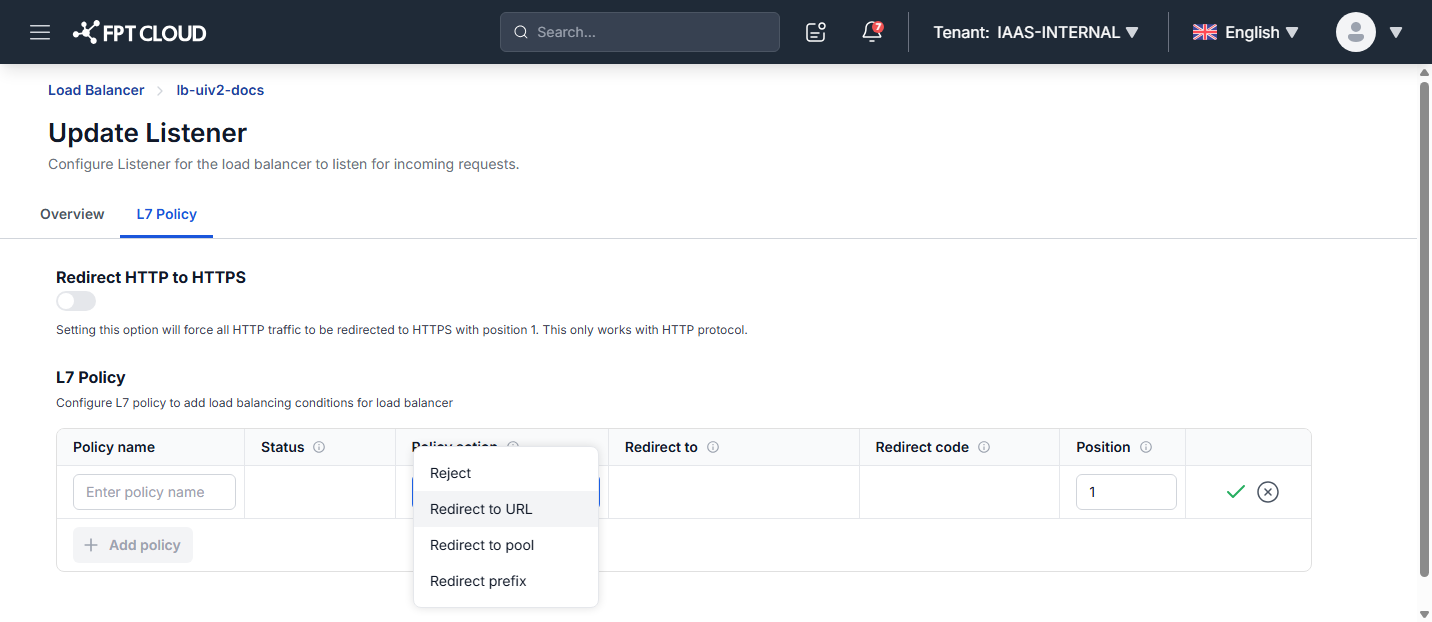

L7 Policy tab with the Policy action options

Step 3: Enter the L7 Policy details:

  • Policy name: Enter a name for the policy.
  • Policy action:
    • Reject: Deny access to the server when the request matches the condition.
    • Redirect to URL: Redirect matching requests to a specific URL with an HTTP response code. Valid codes: 301, 302, 303, 307, or 308.
    • Redirect to pool: Forward matching requests to a selected Server Pool.
    • Redirect prefix: Prepend a prefix string to the request URL when redirecting — useful for structuring redirect URLs and routing users to specific pages or content. Set Redirect to to the prefix URL and choose a Redirect HTTP code (301, 302, 303, 307, or 308).
  • Position: Priority of the policy. Lower position numbers have higher priority.

Click the tick icon to save the L7 Rule, or the delete icon to remove it.

Update an L7 policy​

In the L7 Policy list, click the pencil icon to edit the policy. You can update:

  • Policy name
  • Policy action (Reject, Redirect to URL, Redirect to pool, Redirect prefix)
  • Redirected HTTP code (for Redirect to URL actions): 301, 302, 303, 307, or 308
  • Position

Click the tick icon to save.

Configure L7 rules​

After updating an L7 Policy, add L7 Rules as follows:

Step 1: Click the policy to open its L7 Rules dialog.

Step 2: Click Add L7 rule and enter:

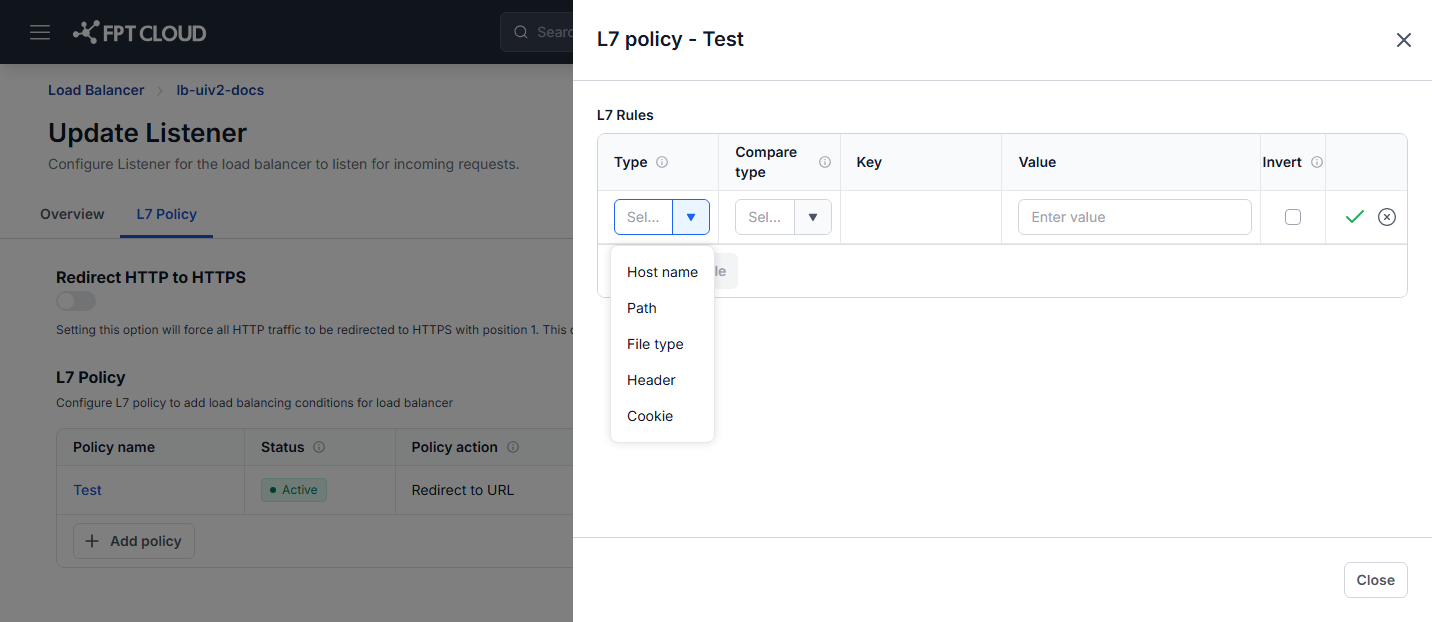

L7 Rules dialog with the Add L7 rule fields

  • Type:
    • Host name: Matches the HTTP/1.1 hostname.
    • Path: Matches part of the HTTP URI.
    • File type: Matches the last portion of the URI (e.g. .txt, .jpg).
    • Header: Searches for the header defined in the key field and compares it to the value.
    • Cookie: Searches for the cookie defined in the key field and compares it to the value.
  • Compare type:
    • Regex: The field matches a regular expression.
    • Equal To: The field exactly matches the provided string.
    • Starts with: The field starts with the provided string.
    • Ends with: The field ends with the provided string.
    • Contains: The field contains the provided string.
  • Key: For Header or Cookie types — the key to identify which header or cookie to compare.
  • Value: The value to compare against.
  • Invert: Reverses the comparison result. When you tick Invert, the rule produces the opposite outcome — the condition is considered matched when the comparison does not match.

Click the tick icon to save the rule or the delete icon to remove it.
