Multiple TLS/SSL certificates on one Load Balancer (SNI)

SNI (Server Name Indication) allows a single Listener to serve multiple hostnames by mapping each hostname to a specific SSL/TLS certificate. This saves resources, supports multi-domain deployments, and improves security for HTTPS services.

How it works:

  • When a client sends an HTTPS request, the browser or application includes the hostname (SNI hostname) during the SSL handshake.
  • The Load Balancer reads the hostname from the SNI and selects the matching SSL certificate.
  • If the hostname matches a configured SNI, the connection is established with the correct certificate.
  • If the hostname does not match any configured SNI, the Load Balancer uses the Default certificate.

When to use SNI:

  • Host multiple domains on the same IP: Run multiple HTTPS websites on a single Load Balancer.
  • Save resources: No need to create separate Load Balancers for different domains.
  • Domain security: Each domain can use its own certificate for easier management and policy compliance.

Configuration steps​

Step 1: Go to the Load Balancer management page on the FPT Cloud Portal.

Step 2: In the Load Balancer list, click the Load Balancer you want to configure.

Step 3: Select the Listener tab, then choose a Listener using the TERMINATED_HTTPS protocol, or create a new Listener if none exists.

Step 4: Assign SSL/TLS certificates to the two certificate fields:

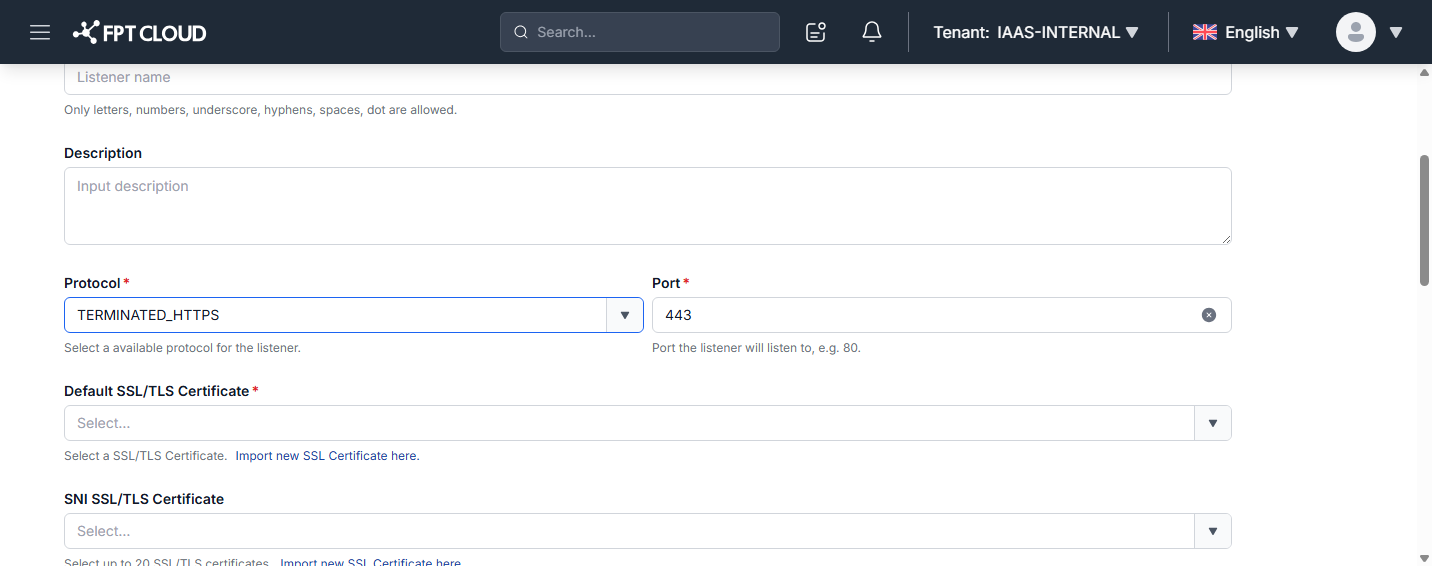

Default SSL/TLS Certificate and SNI SSL/TLS Certificate fields on a TERMINATED_HTTPS listener

  • Default SSL/TLS Certificate: The default certificate used by the Listener when the hostname does not match any SNI.
  • SNI SSL/TLS Certificate: One or more SNI certificates (up to 20). If you don't have a certificate yet, use the Import new SSL Certificate here link on the field, or see Import SSL certificate.

Step 5: Click Update Listener or Create Listener to save.

Step 6: Point your domain names (hostnames) to the Load Balancer's public IP and test access.

Route domains to different pools using L7 policy​

You can combine SNI with L7 policies to route each domain to a different pool:

Step 1: Upload and attach all certificates to the Listener as described above, then go to the L7 Policy tab.

Step 2: Create L7 policies for each domain. Example with three domains:

Policy1:
- Policy action: Redirect to pool
- Redirect to: Pool1
- Position: 1
- Rule: Type=Host name, Compare type=Equal To, Value=example1.com, Invert=No

Policy2:
- Policy action: Redirect to pool
- Redirect to: Pool2
- Position: 2
- Rule: Type=Host name, Compare type=Equal To, Value=example2.com, Invert=No

Policy3:
- Policy action: Redirect to pool
- Redirect to: Pool3
- Position: 3
- Rule: Type=Host name, Compare type=Equal To, Value=example3.com, Invert=No

Step 3: Save and test by accessing each domain to verify correct routing.

note
  • Client must support SNI: Most modern browsers and tools support SNI. Some older clients may not.
  • SSL certificates must be valid and match the hostname.
  • Hostnames must be unique: Do not configure the same hostname with multiple certificates.
  • Wildcard certificates: For subdomains, a single wildcard certificate (e.g. *.example.com) as the default certificate can replace individual per-hostname certificates.
  • L7 policy fallback: If no policy matches a request, it is routed to the default pool.
