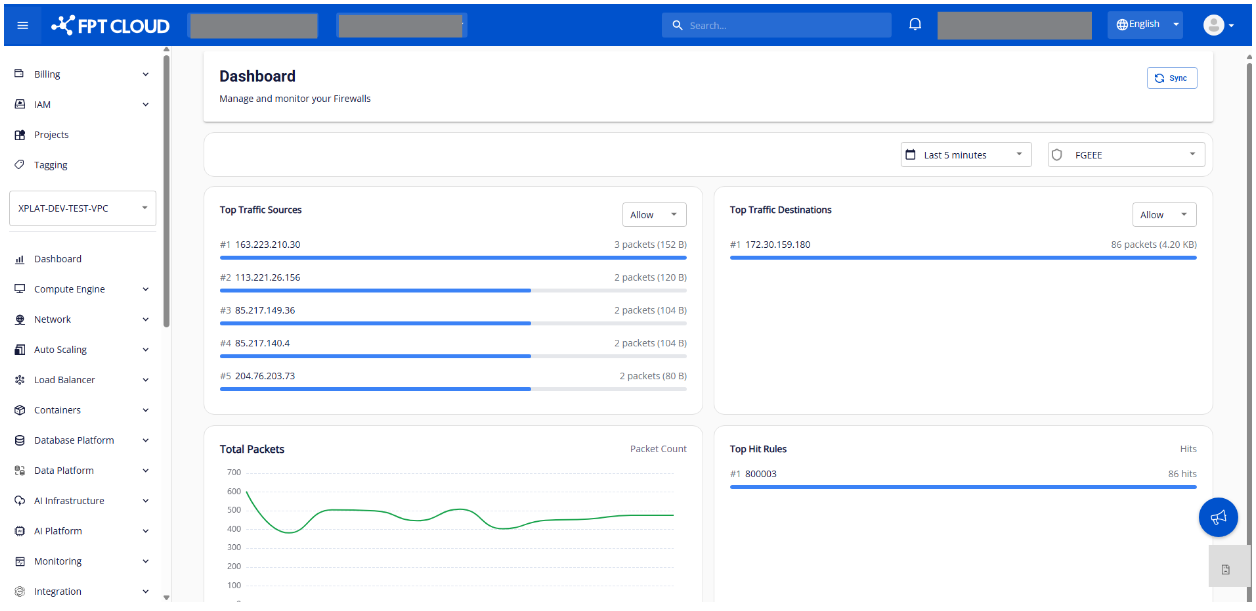

Dashboard

The Dashboard gives you a real-time overview of Firewall activity — traffic trends, top rules, and system health. Use it to spot anomalies and assess Firewall performance.

Steps

1. Select Dashboard in the sidebar.

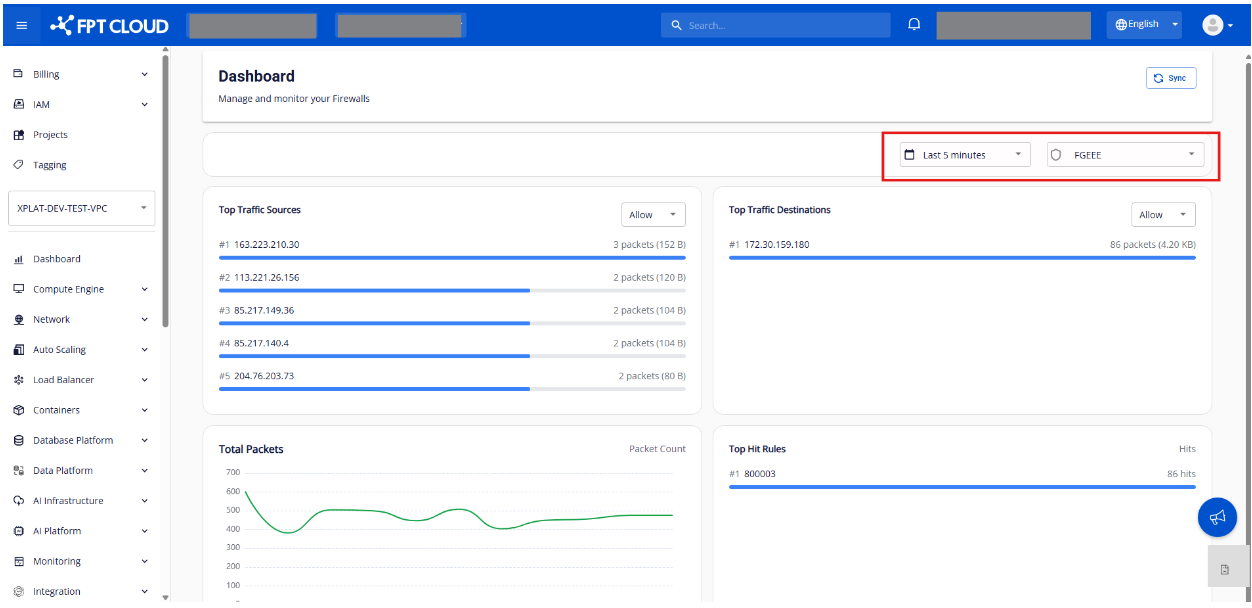

2. Select a Firewall and a Time Range (default: Last 5 minutes).

3. Review the panels:

   Panel	Description
   Top Traffic Sources	Top 5 source IPs by traffic volume. Filter by Allow / Deny (default: Deny).
   Top Traffic Destinations	Top 5 destination IPs by access count. Filter by Allow / Deny (default: Deny).
   Total Packets	Packet count over time split by Allow and Deny.
   Top Hit Rules	Top 5 most-triggered Firewall rules.
   Network Throughput	Traffic volume for 3 directions: Internal, Outbound, Inbound.
   Active Connections	Number of active connections over time.
   CPU Usage / Memory Usage	System performance for the Firewall node(s).

note

Click Sync to refresh Dashboard data without reloading the page.
