IDS/IPS Rule Management

IDS/IPS Rule Management lets you import and manage Suricata-format rule files to detect and block security threats. Access it from Rule Management → IDS/IPS Rule tab.

Prerequisites​

The selected Firewall must have at least one associated subnet before you can enable IDS/IPS. If none are associated, click Associate Subnet first — see Associate / Dissociate Subnet.

Enable IDS/IPS​

When IDS/IPS is not yet enabled, the screen shows "IDS/IPS is disabled".

  1. Click Enable IDS/IPS.

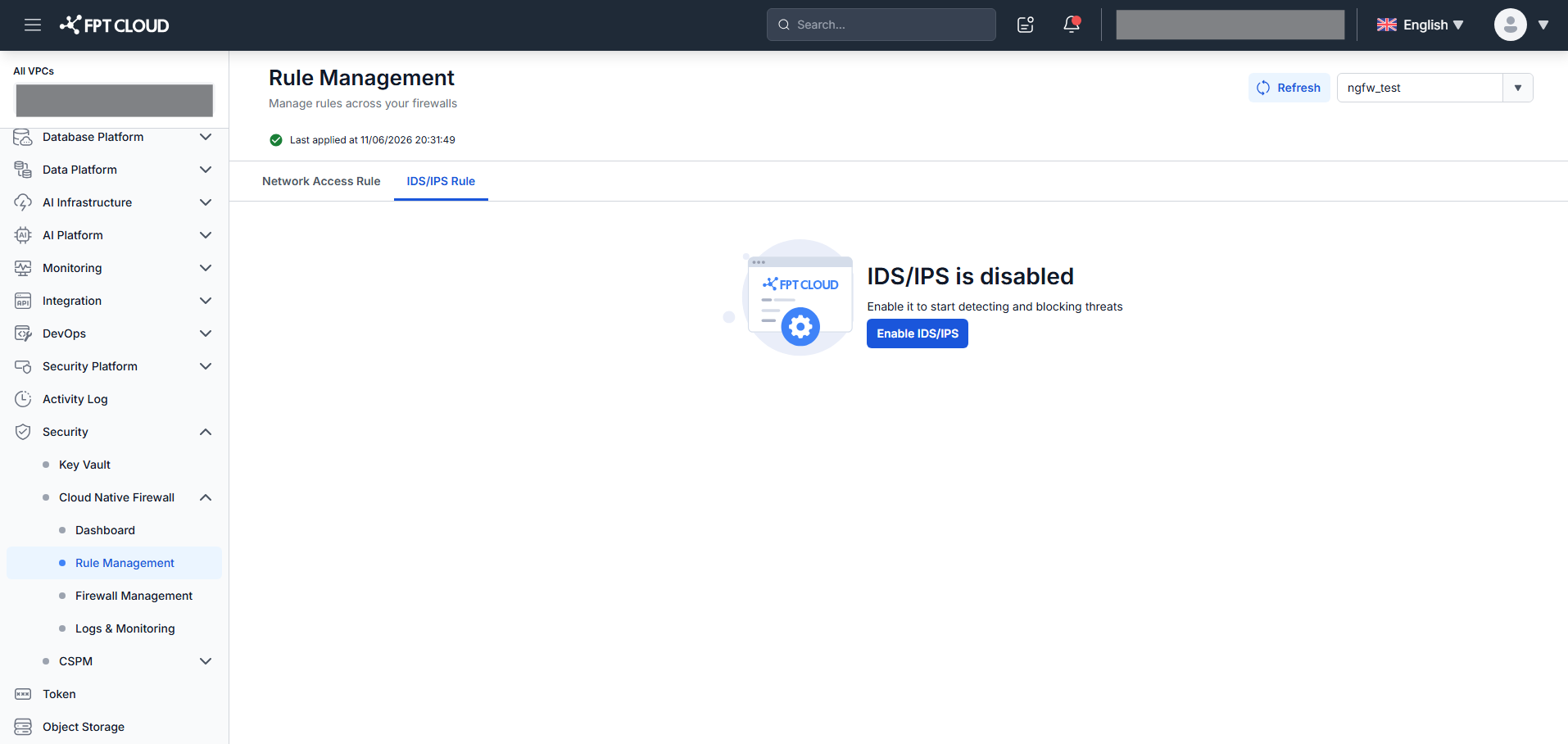

    IDS/IPS disabled state

  2. Confirm in the popup.

After enabling, the system loads the rule file list. The default fpt-managed.rules file is pre-loaded.

View rule files​

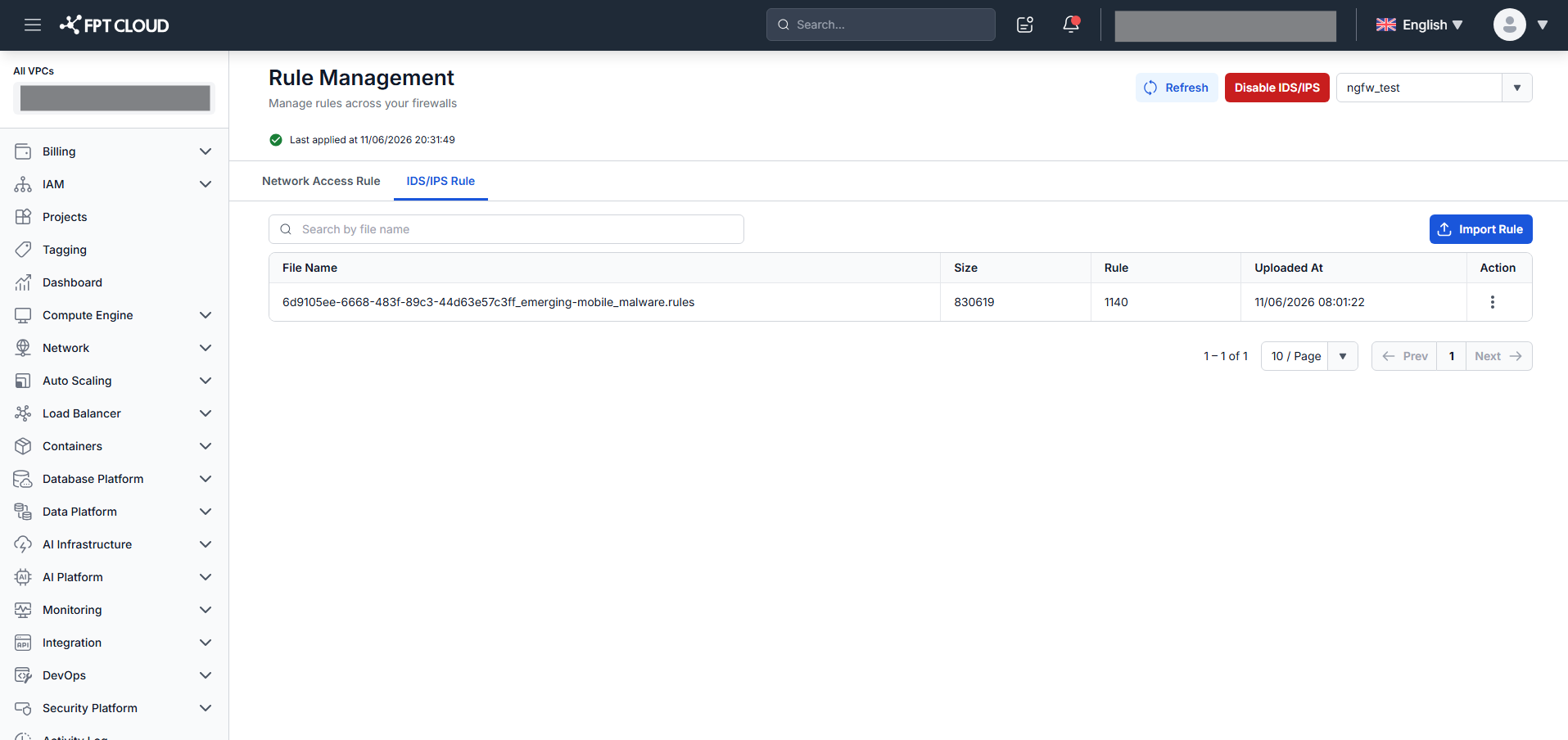

IDS/IPS rule file list

ColumnDescription
File NameRule file name.
SizeFile size.
RulesNumber of rules in the file.
Uploaded AtUpload timestamp.
ActionDownload / Delete.

Search by file name. The header shows total file count and total rule count.

Import a rule file​

  1. Click Import Rule.

  2. Drag and drop a file or click to browse.

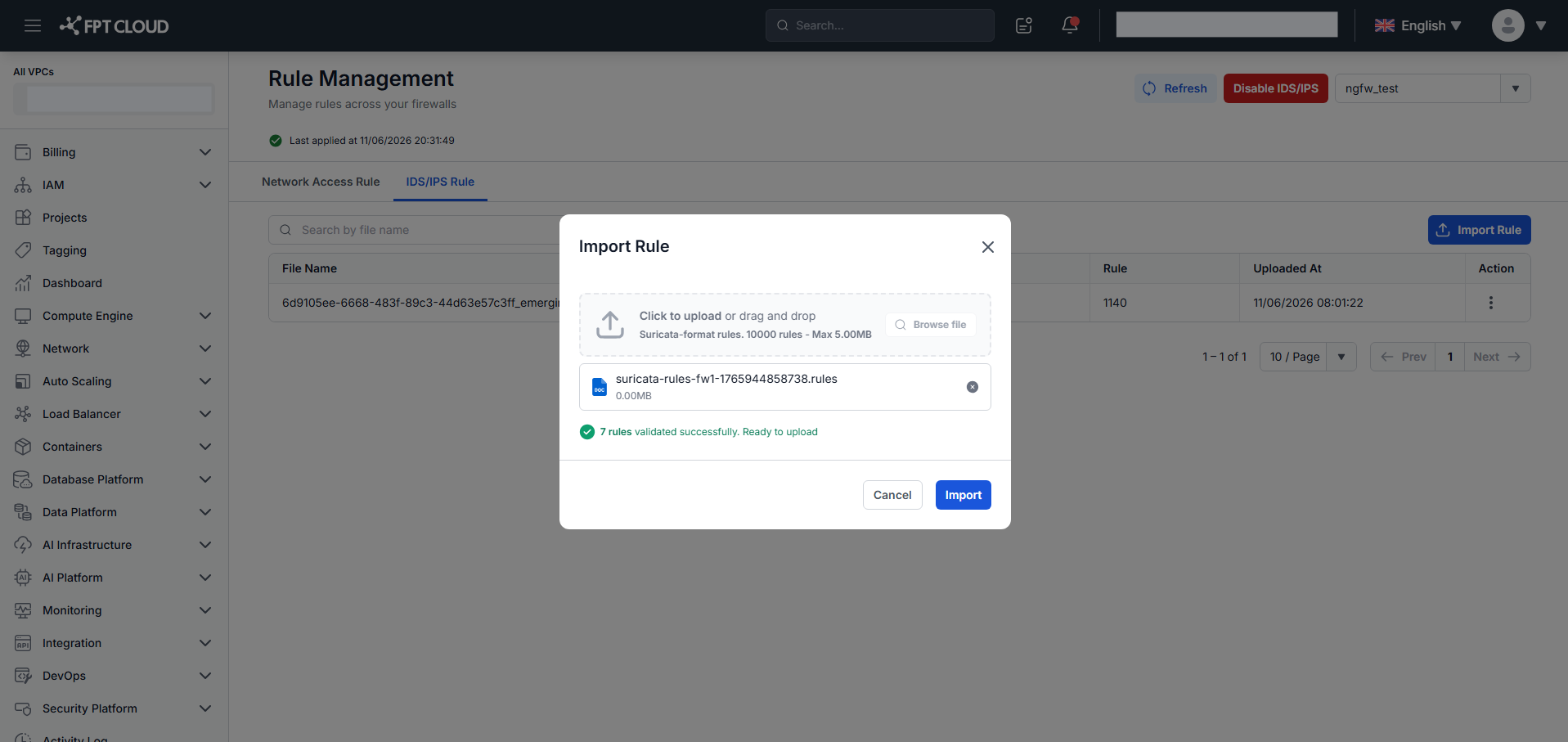

    Import Rule popup

    Requirements: .rules format (Suricata), max 5 MB, max 10,000 rules.

    The system validates the file automatically:

    • Valid — shows file name, size, and "X rules validated successfully. Ready to upload." The Import button is enabled.
    • Invalid — shows an error summary and the first 5 error lines in Line [N]: Error message format.

  3. Click Import. Applied Status changes to In Progress, then Applied on completion.

note
  • Files with a duplicate name are rejected.
  • Duplicate SIDs within the file or matching an already-imported file cause a validation error.
  • Click the X icon next to the selected file to replace it and restart the upload.

Download a rule file​

Click Download in the Action column. The file downloads to your machine.

Delete a rule file​

  1. Click Delete in the Action column.

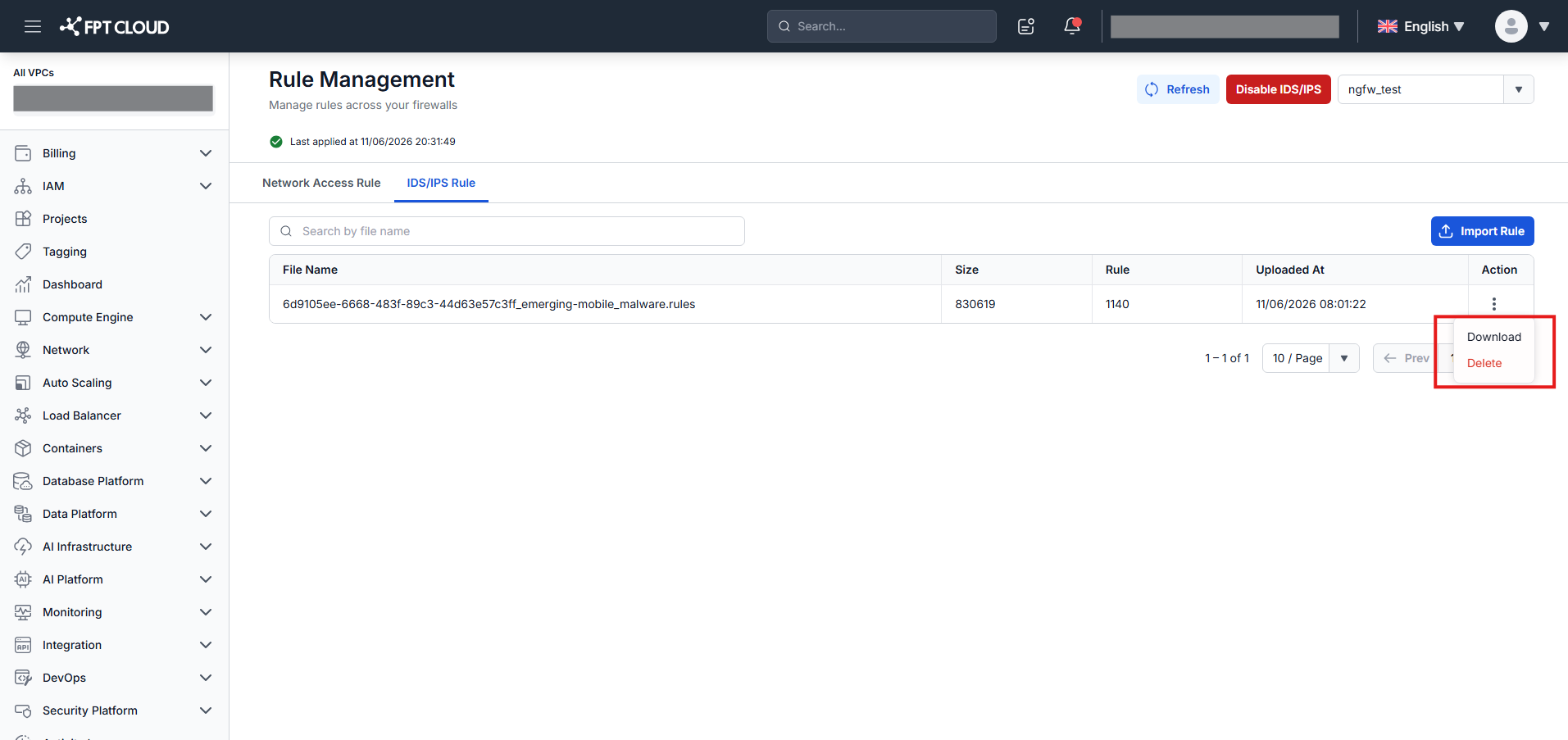

    Download and Delete actions

  2. Confirm in the popup. The file is removed and the list updates.

Disable IDS/IPS​

Click Disable IDS/IPS in the header, then confirm to turn off IDS/IPS for the selected Firewall.

warning

While the Firewall is processing, Enable / Disable / Delete / Import actions show "Firewall is being updated. Please wait."
