Tutorial: create a Checkpoint Firewall

By the end of this tutorial you will have provisioned a working Checkpoint Firewall in a VPC and will understand how the non-HA and HA flows differ. You will fill every wizard step, so keep your subnet and IP plan handy.

Prerequisites​

  • A tenant (org) in the FPT Cloud Console.
  • A VPC with 3 free isolate subnets.
  • 1 free public IP for the non-HA flow, or 3 free public IPs for the HA flow.

What you'll build​

A Checkpoint NGFW cluster: a Master gateway, an SMS, and a Jump host — plus a Slave gateway if you enable HA.

Steps​

Step 1: Open the wizard​

  1. Sign in to the FPT Cloud Console.
  2. Open Security → Checkpoint Firewall from the left menu.

When no firewall exists yet, the page shows an empty state with a create button.

Empty Checkpoint Firewall list with the Create Checkpoint Firewall button

  1. Click Create Checkpoint Firewall to open the wizard.

Step 2: Fill Basic Configuration​

Set the following fields:

  • Region — the current region of your org.
  • VPC — the VPC that will host the firewall.
  • Firewall Type — Checkpoint (the only supported type today).
  • Package Type — NGFW, NGTP, or NGTX.
  • Template — Standard, Advance, or Premium. See the configuration reference for the vCPU, RAM, and Storage of each.
  • High Availability (HA) — enable it to add a Slave gateway.

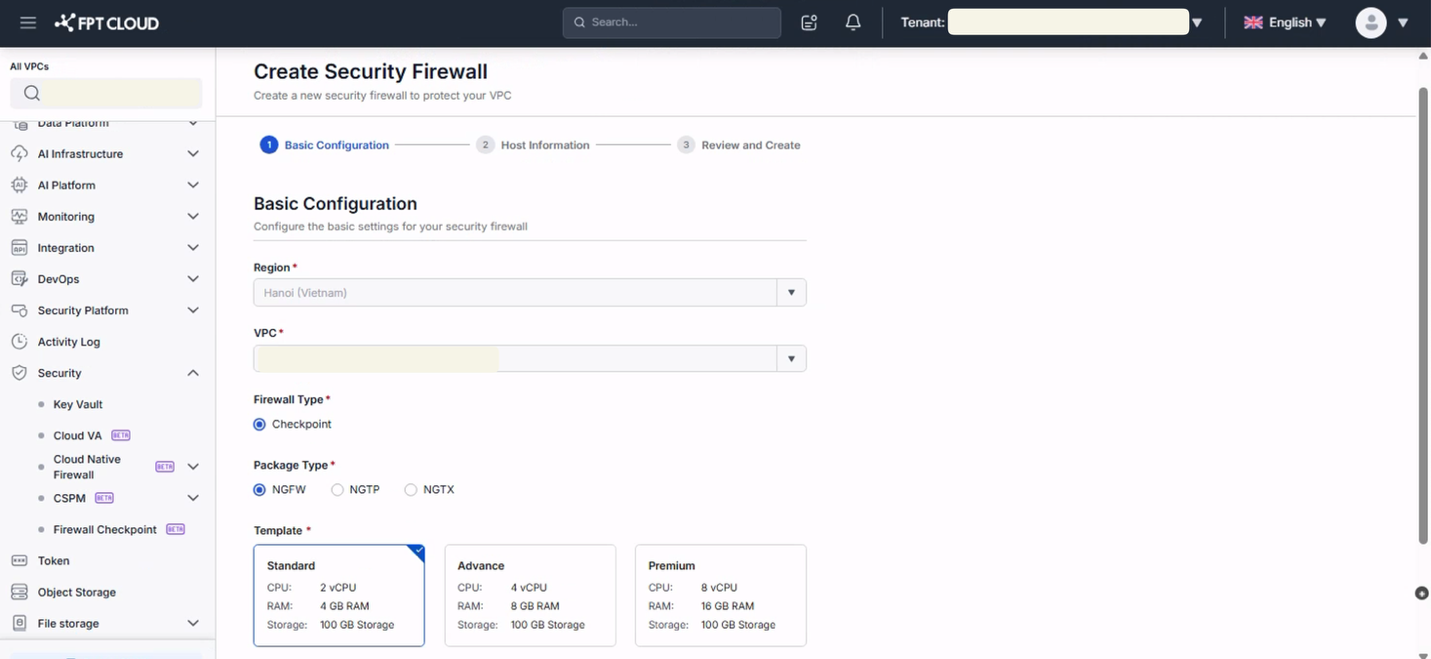

Basic Configuration step with Region, VPC, Package Type, Template, and High Availability toggle

Click Next.

Step 3: Enter Host Information​

Name each host and set its network. CPU, RAM, and Disk default to the Template you chose in Step 2.

Master Host

  • Name — a name for the Checkpoint Master.
  • Subnet — select an isolate subnet.
  • Private IP — leave blank to auto-assign. The system uses 1 IP without HA, or 3 IPs with HA.
  • Password — set the host login password. This is for Console/SSH access to the VM, and is separate from the maintenance account the system emails you.

Slave Host (only shown when HA is enabled)

  • Name — a name for the Checkpoint Slave.
  • Subnet — inherited automatically from the Master Host.
  • Private IP — leave blank to auto-assign.

Checkpoint SMS Network

  • Name — a name for the SMS.

Jump

  • Name — a name for the Jump host.

Non-HA example​

With HA disabled, you fill the Master, SMS, and Jump.

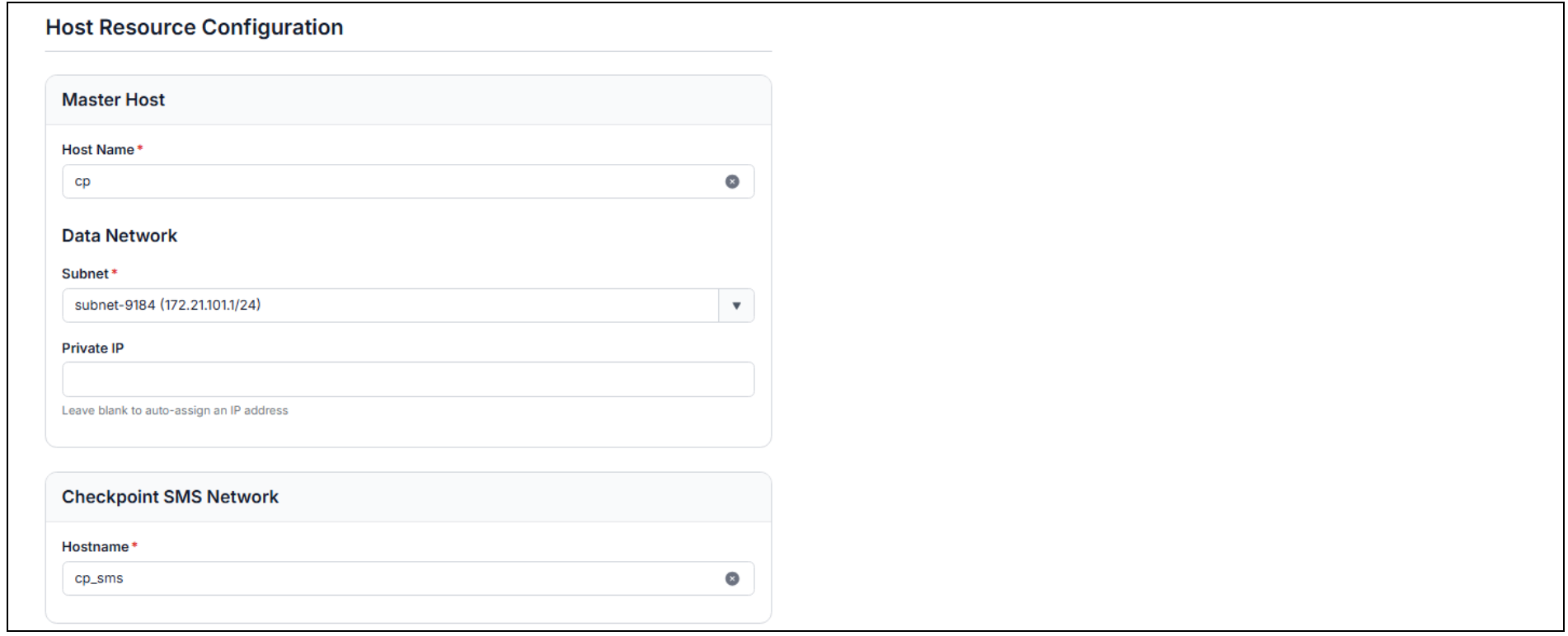

Host Information with Master and SMS filled in, without HA

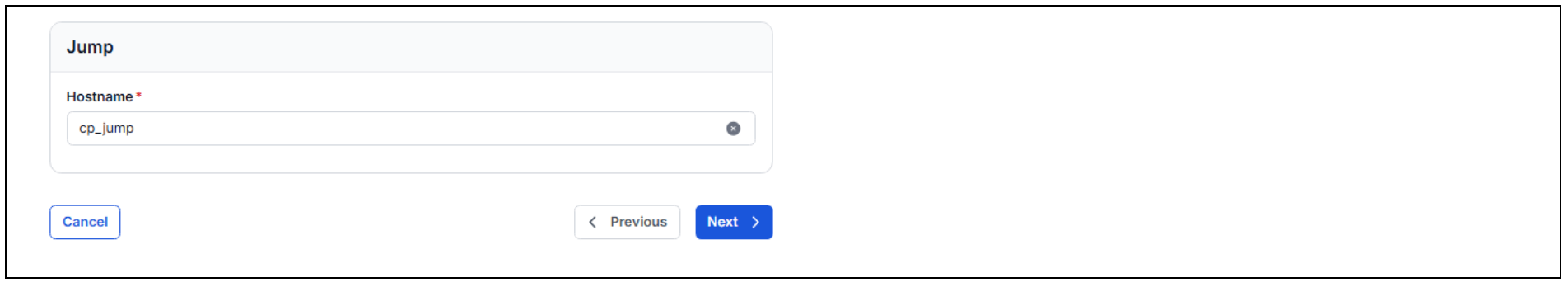

Host Information for the Jump host, without HA

HA example​

With HA enabled, the Slave block appears alongside the Master, SMS, and Jump.

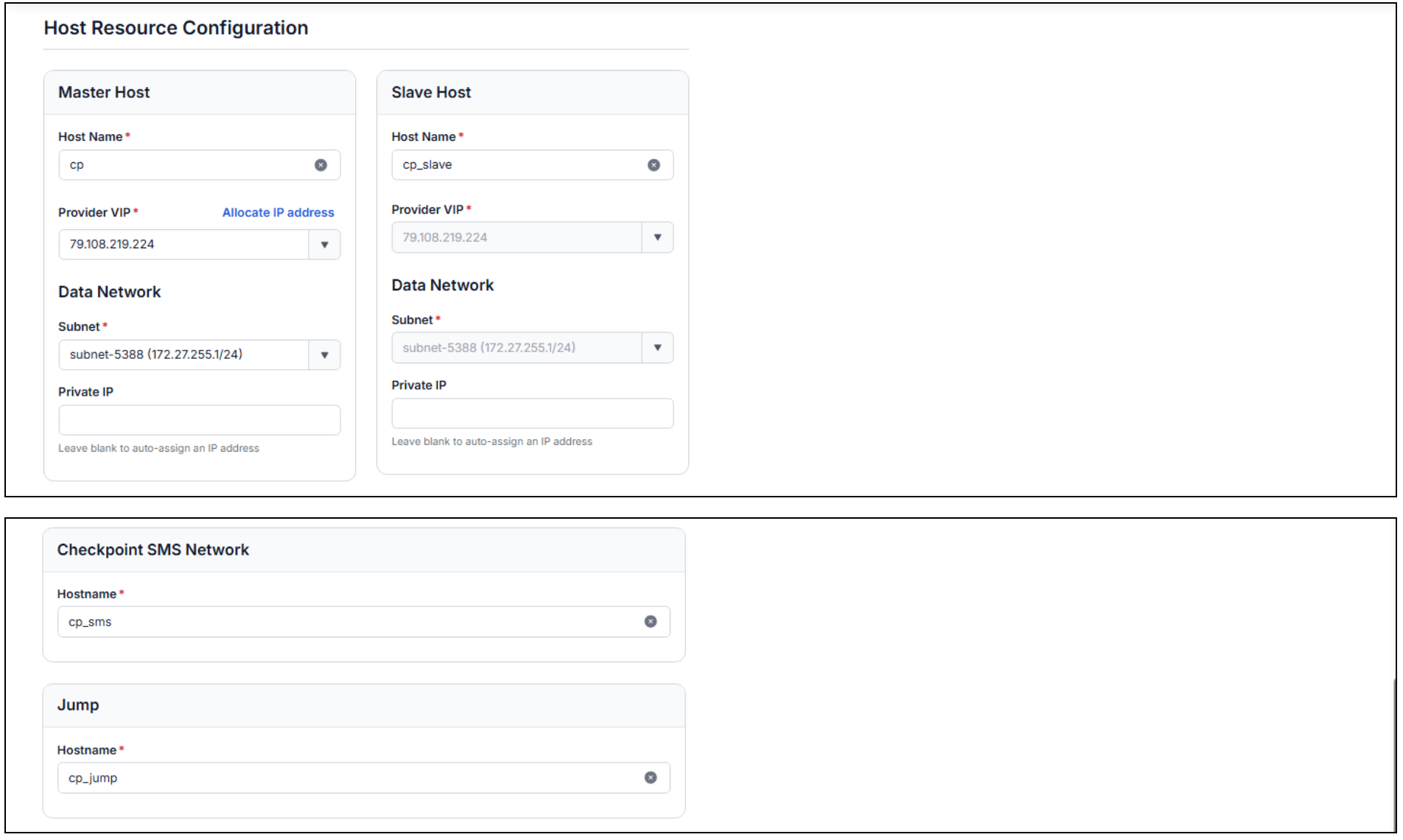

Host Information for Master, Slave, SMS, and Jump with HA enabled

Click Next.

Step 4: Review and create​

Check every value on the summary, then click Create Firewall.

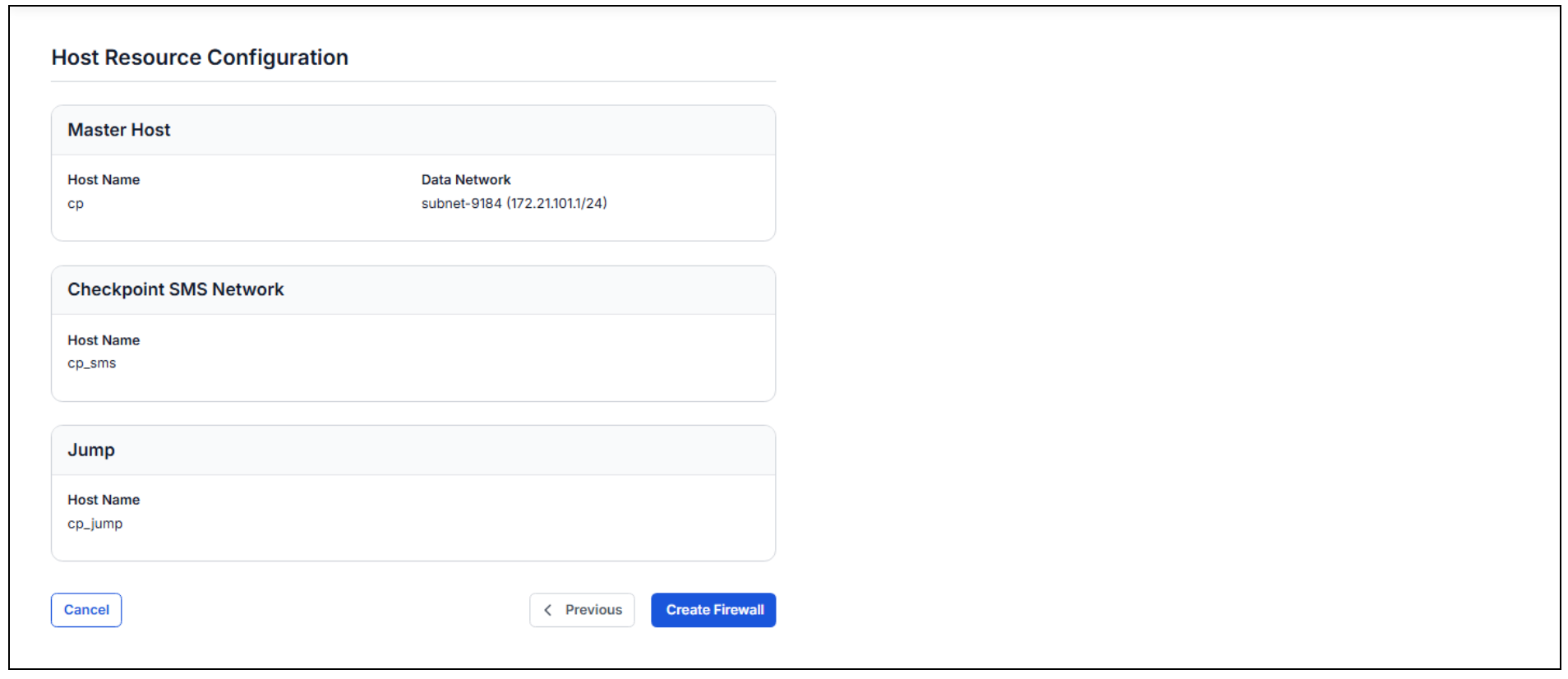

Review summary for a firewall without HA

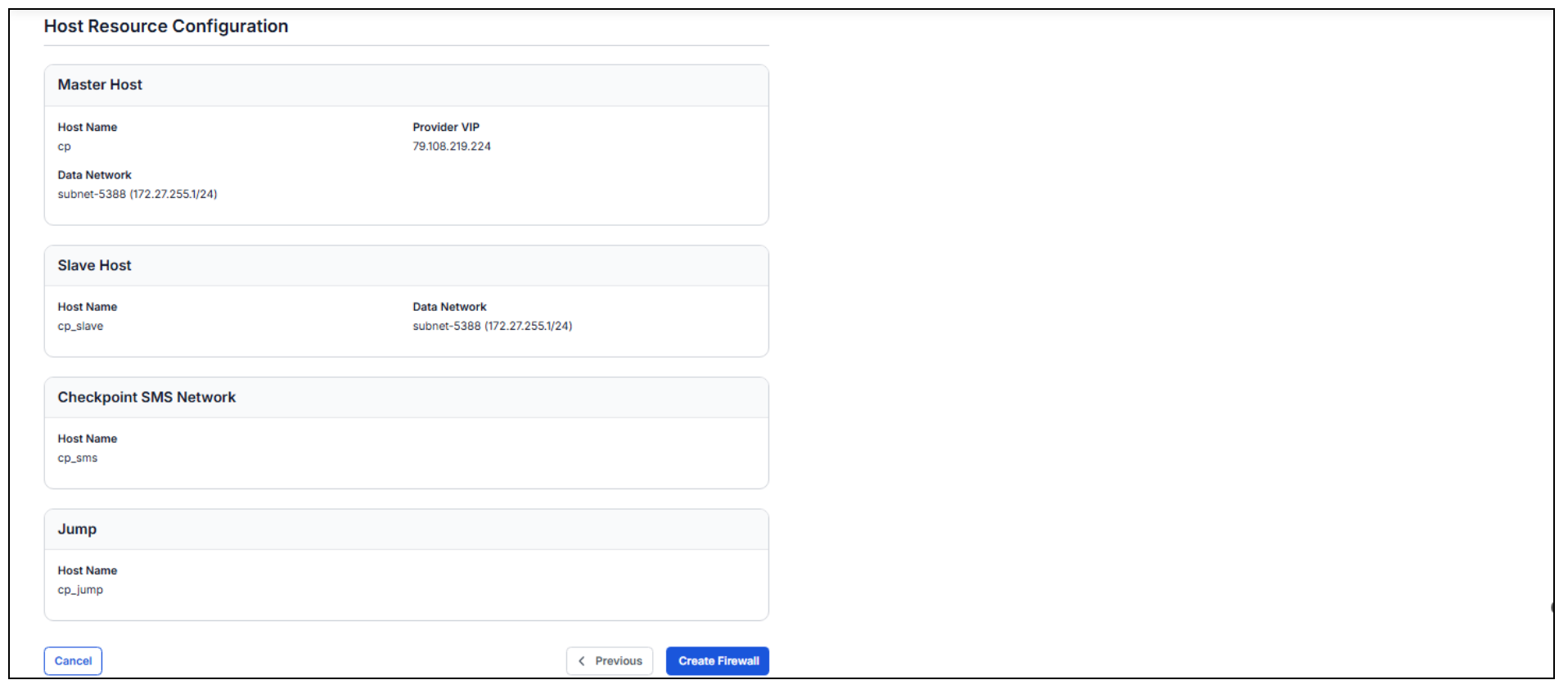

Review summary for a firewall with HA

The system provisions the cluster. When it finishes, you receive an email confirming the firewall was created.

Email confirming the firewall was created successfully

Summary​

You provisioned a Checkpoint Firewall, saw how HA adds a Slave gateway and raises the IP requirement, and learned where the maintenance account comes from.
