Connect VyOS 1.5
Step 1: Configure VPN Site-to-Site on FPT Cloud Portal

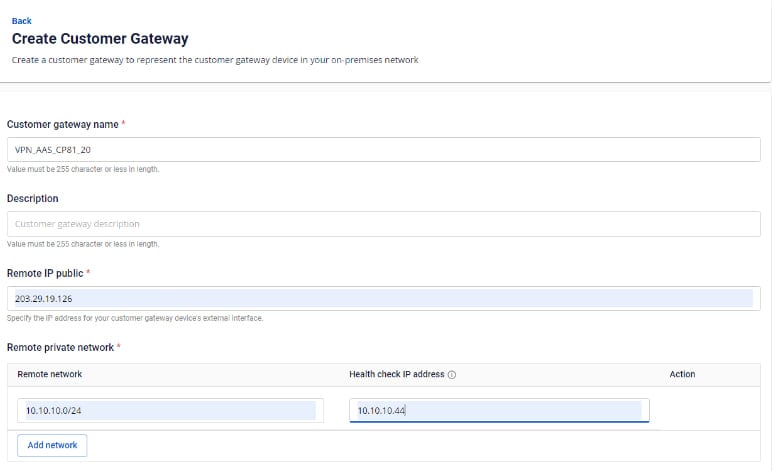

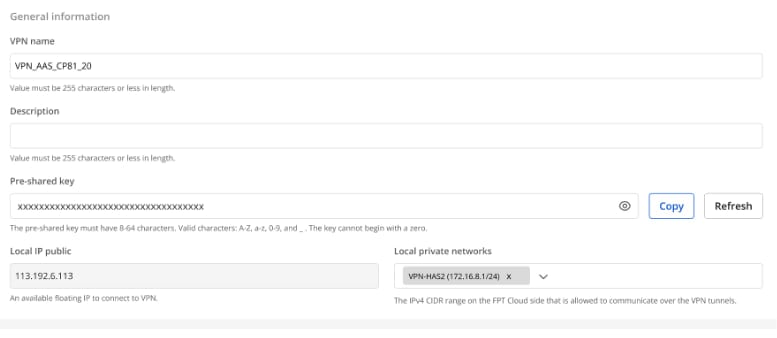

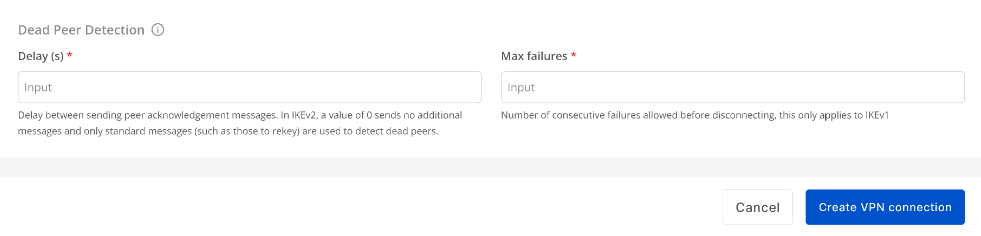

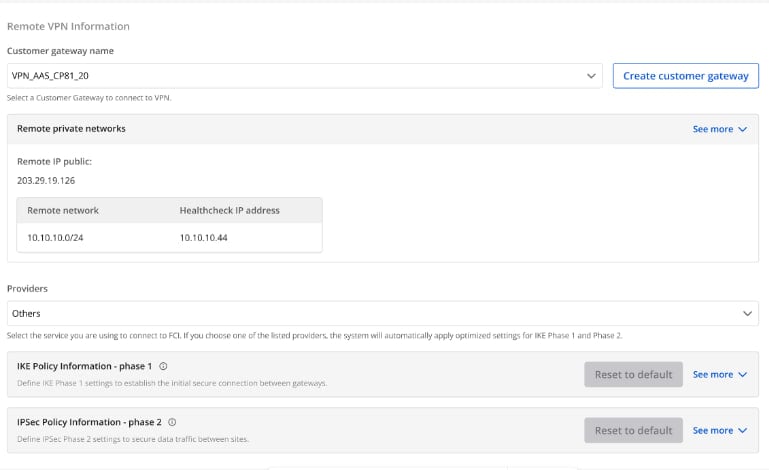

Create a Customer Gateway and a VPN Connection for the VyOS device on the FPT Cloud Portal. For detailed steps, see Create VPN connection.
Step 2: Configure VyOS
- SSH into VyOS using the key created above.
- SSH to the IP address {
IP PUBLIC} with user: "vyos". Example: ssh vyos@{IP PUBLIC}.
Run the following commands (replace parameters with your actual values):
configure
set interfaces ethernet eth0 address '{`IP Public Vyos`}'
set interfaces ethernet eth1 vif 111 address '{`IP LAN Vyos`}/24'
set protocols static route 0.0.0.0/0 next-hop {`IP-Remote`}
set vpn ipsec authentication psk RIGHT id '{`IP Public Vyos`}'
set vpn ipsec authentication psk RIGHT id {`IP-Remote`}
set vpn ipsec authentication psk RIGHT secret ' {`Pre-Share-Key`}'
set vpn ipsec esp-group ESP-GROUP mode 'tunnel'
set vpn ipsec esp-group ESP-GROUP proposal 1 encryption 'aes256'
set vpn ipsec esp-group ESP-GROUP proposal 1 hash 'sha256'
set vpn ipsec ike-group IKE-GROUP key-exchange 'ikev2'
set vpn ipsec ike-group IKE-GROUP proposal 1 dh-group '14'
set vpn ipsec ike-group IKE-GROUP proposal 1 encryption 'aes256'
set vpn ipsec ike-group IKE-GROUP proposal 1 hash 'sha256'
set vpn ipsec interface 'eth0'
set vpn ipsec site-to-site peer RIGHT authentication mode 'pre-shared-secret'
set vpn ipsec site-to-site peer RIGHT connection-type 'initiate'
set vpn ipsec site-to-site peer RIGHT default-esp-group 'ESP-GROUP'
set vpn ipsec site-to-site peer RIGHT ike-group 'IKE-GROUP'
set vpn ipsec site-to-site peer RIGHT local-address '{`IP Public Vyos`}'
set vpn ipsec site-to-site peer RIGHT remote-address {`IP-Remote`}
set vpn ipsec site-to-site peer RIGHT tunnel 0 local prefix '{`Sunet LAN Vyos`}/24'
set vpn ipsec site-to-site peer RIGHT tunnel 0 remote prefix '{`Sunet LAN Remote`}/24'
Save and commit:
commit
save
